Stanford Research DC205 Precision DC Voltage Source, ±100 Vdc, 50 mA, USB

Stanford Research DC205 Precision DC Voltage Source, ±100 Vdc, 50 mA, USB

The DC205 low-noise, high-resolution DC voltage source is the right tool when a precision bias source is needed. Its bipolar, four-quadrant output delivers up to 100 V with 1 µV resolution and up to 50 mA of current. In 4-wire mode (remote sense), the instrument corrects for lead resistance, delivering accurate potential to your load. The DC205's output stability is a remarkable ±1 ppm over 24 hours. With its linear power supply, there is no need to worry about high-frequency noise.

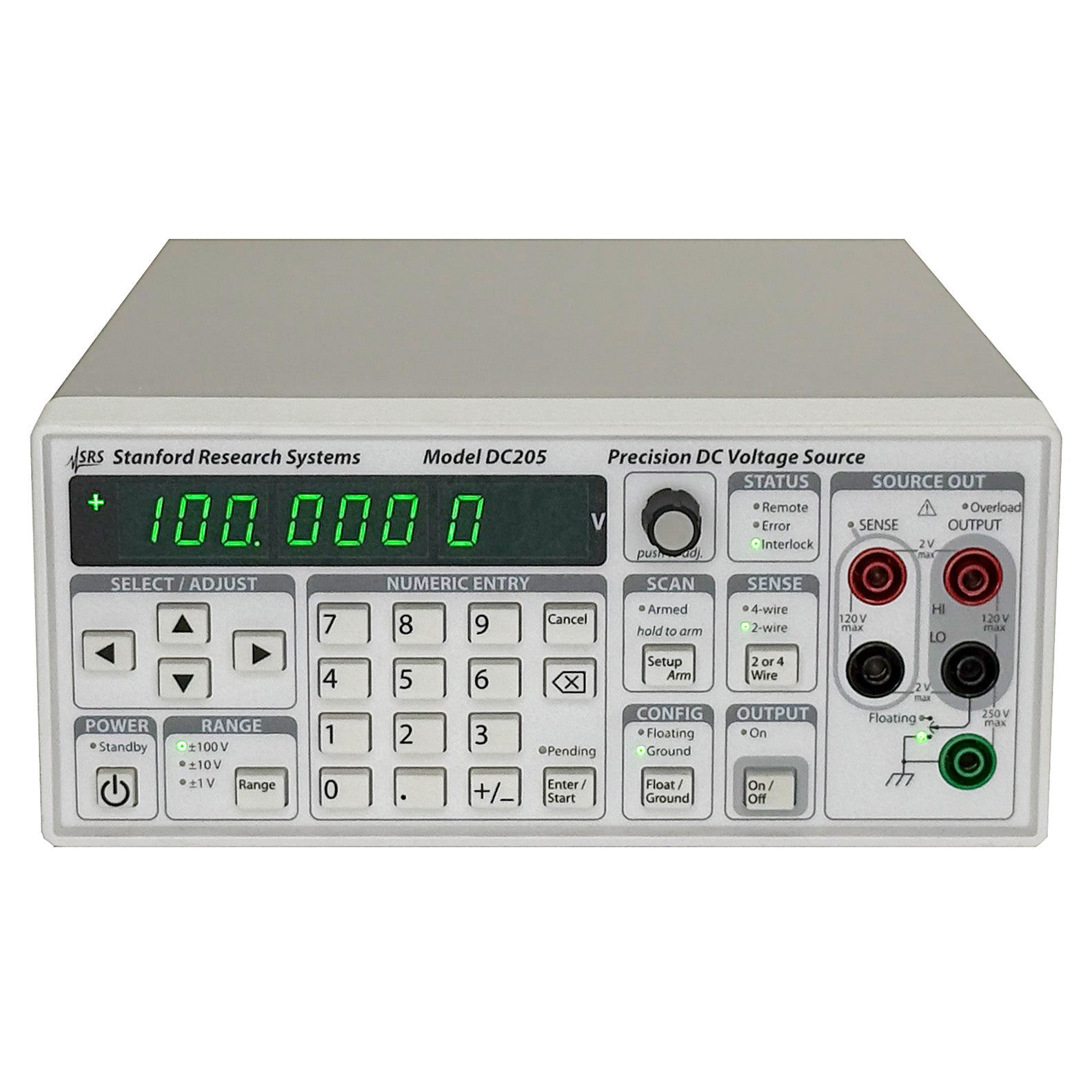

The front-panel display of the DC205 lets you set voltage with true 6-digit resolution. There are three voltage ranges to choose from: ±1 V, ±10 V, and ±100 V, which allow voltage settings from 1 µV to 100 V.

Features:

• ±100 VDC range
• Current: 50 mA
• True 6-digit resolution
• 1 ppm/°C stability
• 0.0025 % accuracy (1 yr.)
• Triggerable voltage scans
• Low-noise design
• Linear power supply

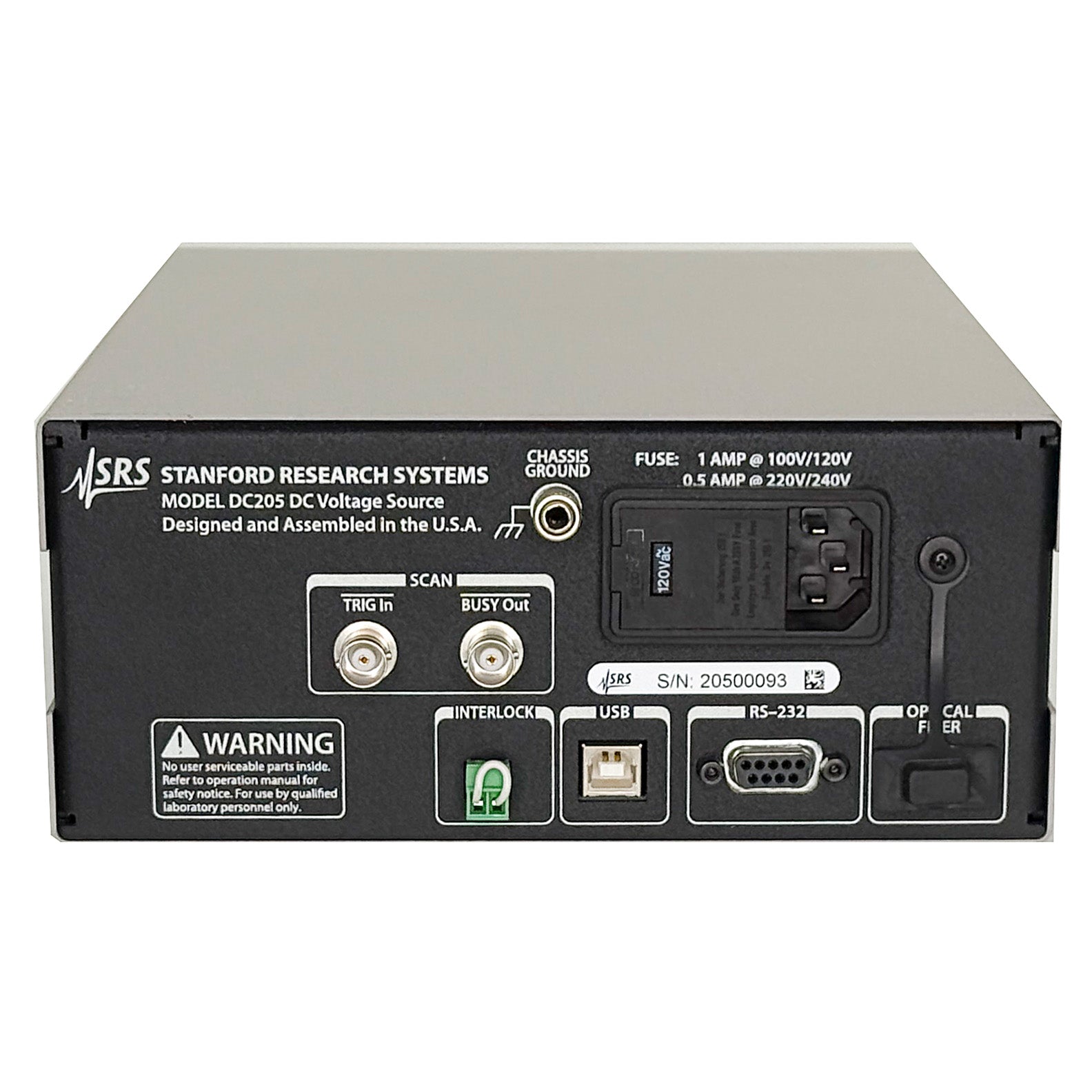

• RS-232, USB, and fiber optic interfaces
• 100/120/220/240 Vac; 50 or 60 Hz operation
• Weight: 10 lbs; Size: 3.55 in H x 8.3 in W x 13.0 in D

Please see the Datasheet for complete details and specifications.
