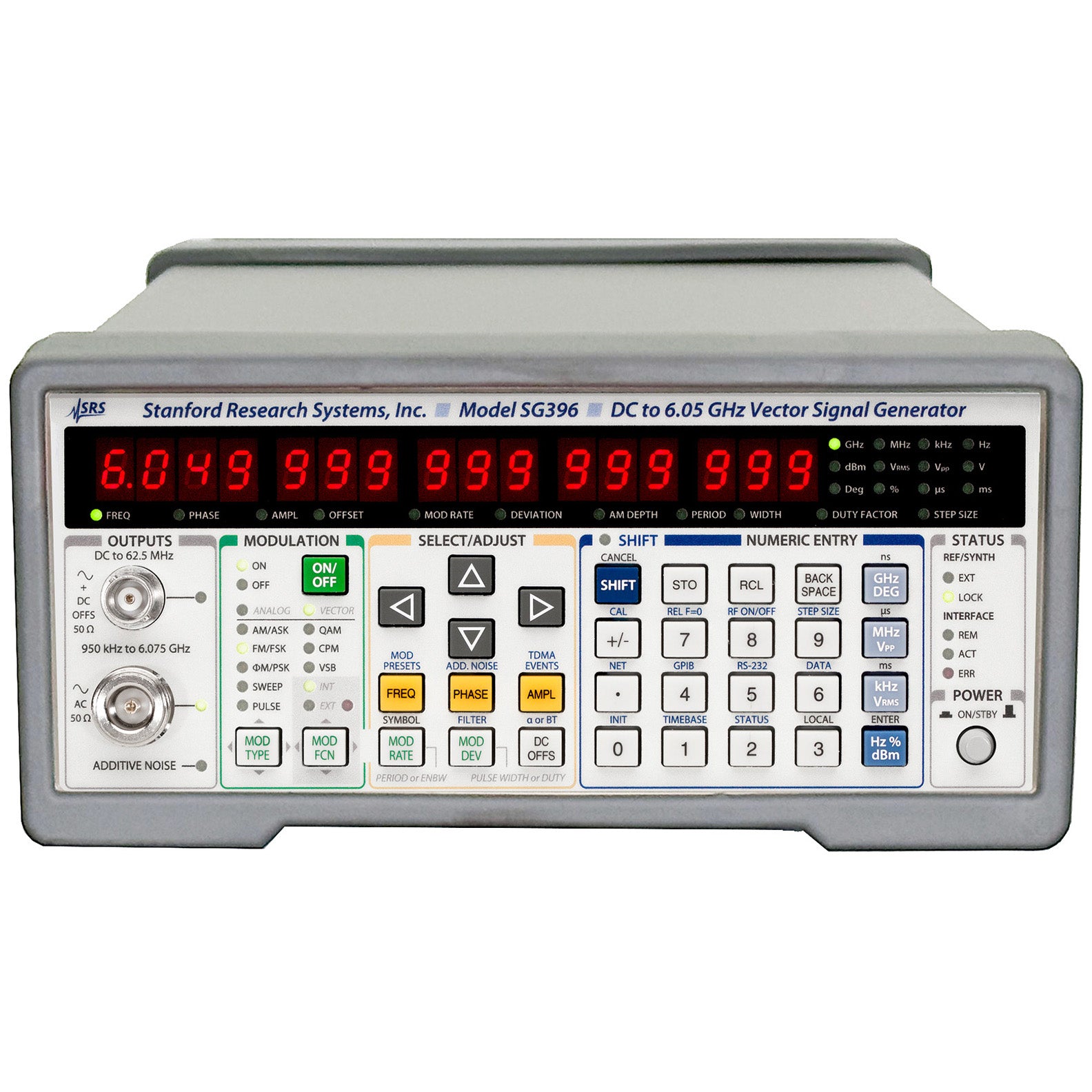

Stanford Research SG396 Vector Signal Generator 6.075 GHz

Stanford Research SG396 Vector Signal Generator 6.075 GHz

The SG396 RF Signal Generator with a carrier frequency of DC to 6.075 GHz supports both analog and vector modulation. The instrument utilizes a new RF synthesis technique which provides spur-free outputs with low phase noise (–116 dBc/Hz at 1 GHz) and extraordinary frequency resolution (1 µHz at any frequency). Both analog modulation and vector baseband generators are included as standard features.

The SG396 uses an ovenized SC-cut oscillator as the standard timebase, providing a 100-fold improvement in the stability (and a 100-fold reduction in the in-close phase noise) compared to instruments which use a TCXO timebase.

Features:

• Frequency Range: 950 kHz to 6.075 GHz
• Frequency Resolution: 1 µHz at any frequency
• Power Output: +16.5 dBm to –110 dBm (<4 GHz)
• Power Resolution: 0.01 dBm
• Output Coupling: AC, 50 Ω
• Dual Baseband ARB Generators
• Vector and analog modulation
• I/Q modulation inputs (300 MHz RF BW)
• ASK, FSK, MSK, PSK, QAM, VSB, and custom I/Q
• Presets for GSM, EDGE, W-CDMA, APCO-25, DECT, NADC, PDC, ATSC-DTV & TETRA
• Standard OCXO Timebase

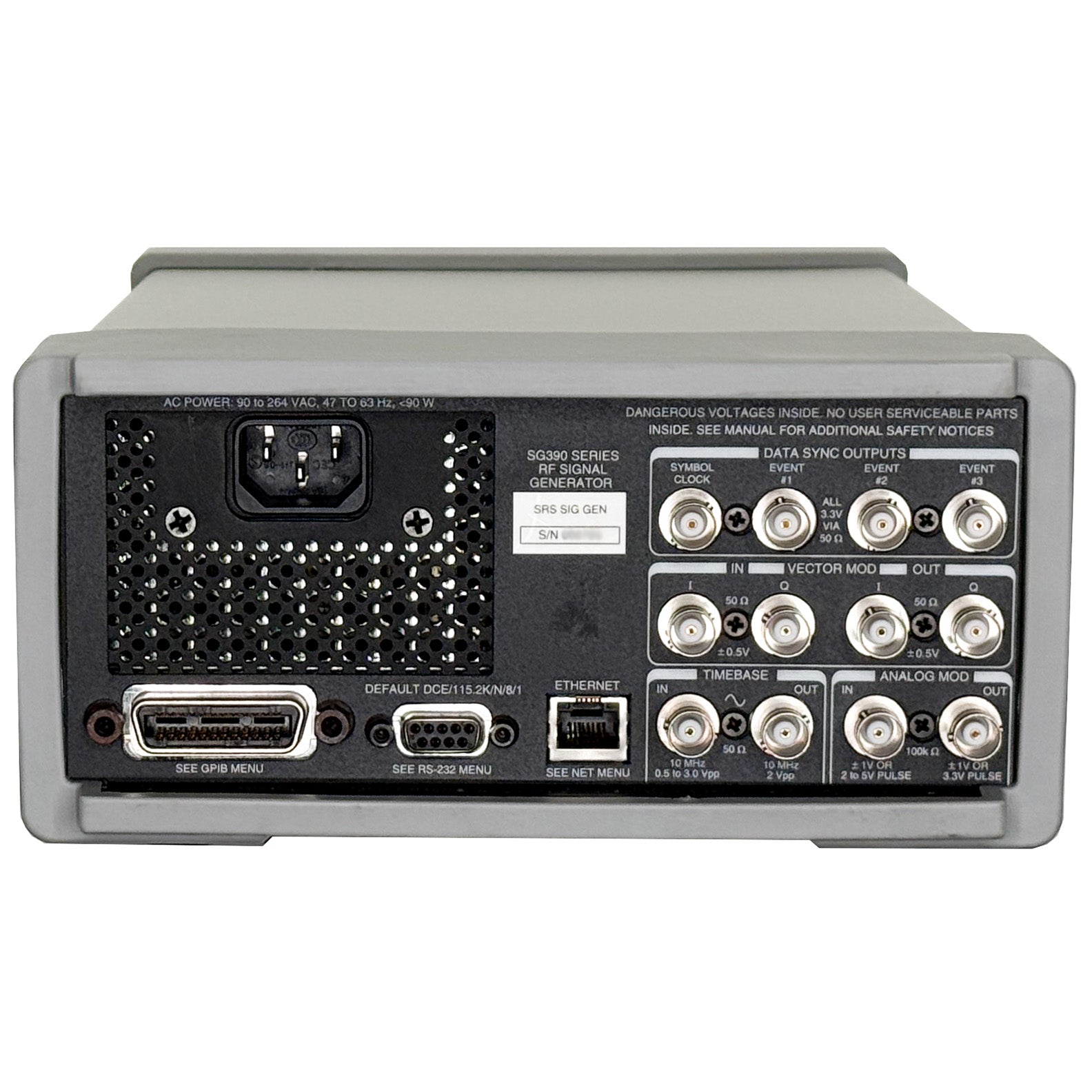

• Ethernet (LAN) 10/100 Base-T.TCP/IP & DHCP default, GPIB (IEEE-488.2), and RS-232 interfaces
• 90 to 264 Vac; 47 Hz to 63 Hz operation
• Weight: 10 lbs.; Size: 8.5" × 3.5" × 13" (WHD)

Please see the Datasheet for complete details and specifications.
