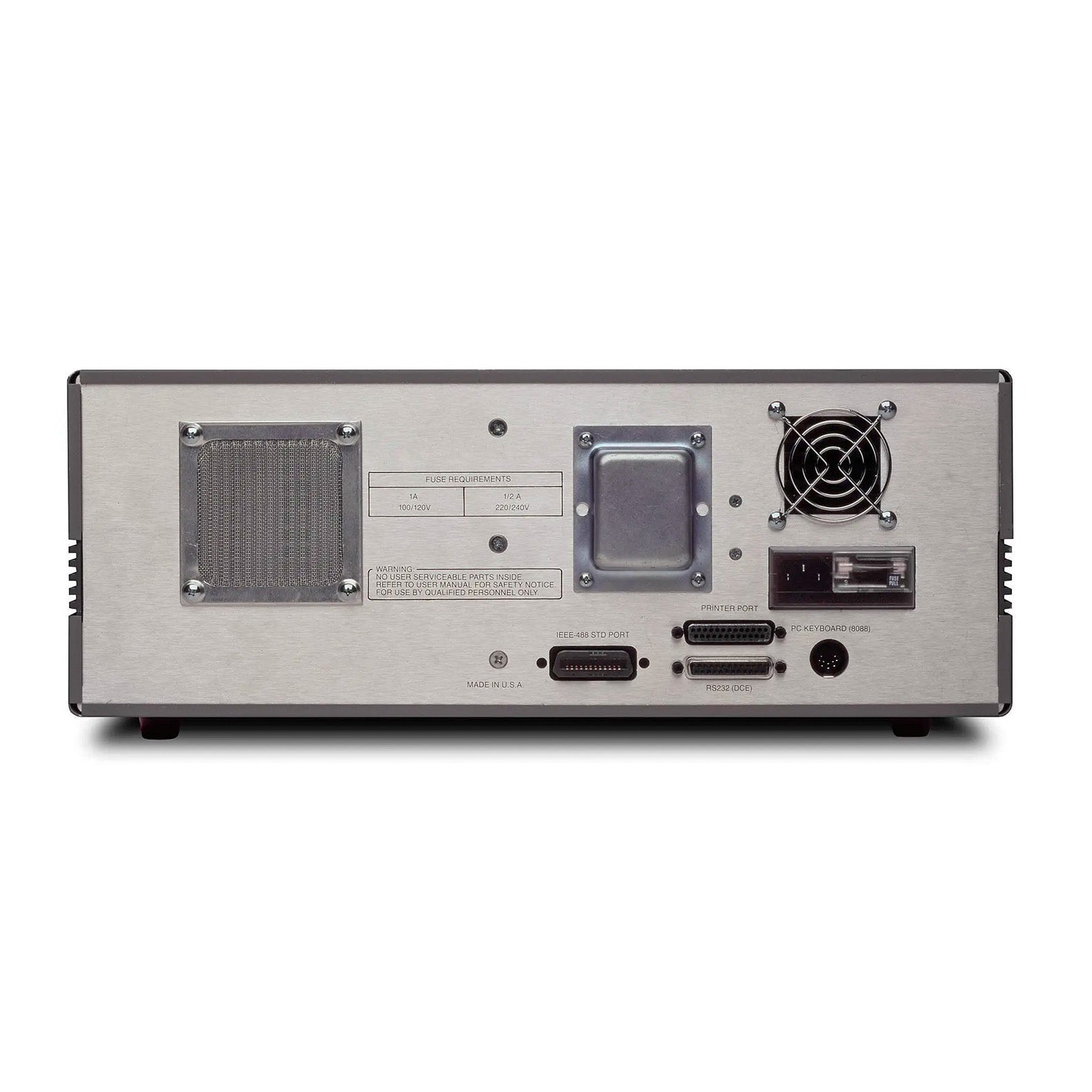

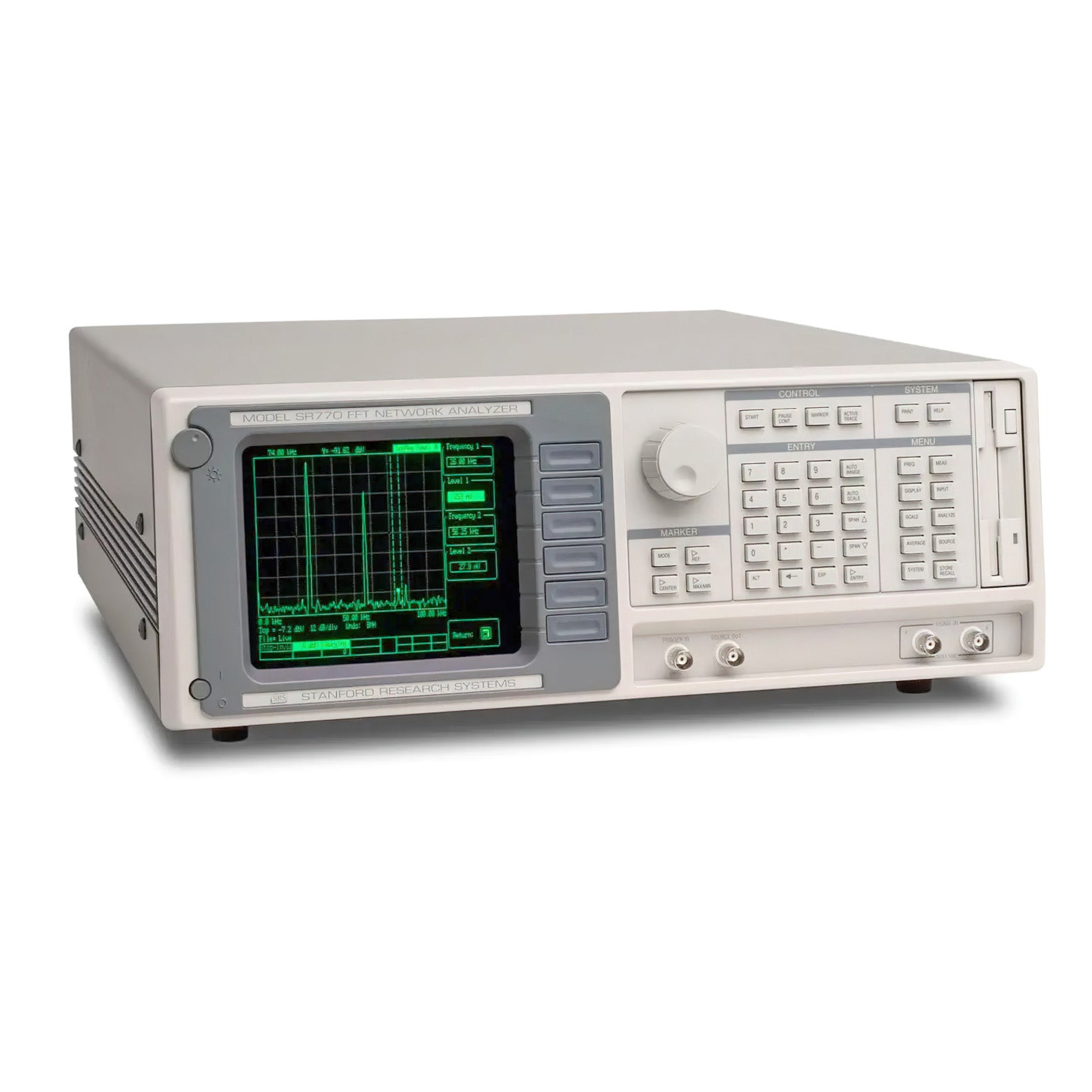

Stanford Research SR770 FFT Spectrum Analyzer, 476 µHz to 100 kHz, with Low-Distortion, Synthesized Source, Single Channel

Stanford Research MPN: SR770
REFURBISHED & TESTED 6-MONTH WARRANTY ALSO AVAILABLE FOR RENT

Price:
Sale price$3,695.00 USD
Stock:
In stock - Ships in 1 to 2 Business Days

Description

Stanford Research SR770 FFT Spectrum Analyzer, 476 µHz to 100 kHz, with Low-Distortion, Synthesized Source, Single Channel

The SR770 is a single channel, 100 kHz FFT Spectrum Analyzer with a dynamic range of 90 dB and a real-time bandwidth of 100 kHz. The speed and dynamic range of the SR770, coupled with its' flexibility and many analysis modes, makes it the ideal choice for a variety of applications including acoustics, vibration, noise measurement, and general electronic use. The SR770 includes a low-distortion source which allows you to measure the transfer functions of electronic and mechanical systems.

Features:

  • Measurement range: 476 µHz to 100 kHz
  • Spans: 191 MHz to 100 kHz in a binary sequence
  • Real-time bandwidth: 100 kHz
  • Channels: 1
  • Input impedance: 1 M Ohm + 15 pF
  • Amplitude range: 0.1 mVp to 1.0 Vp
  • Dynamic range: 90 dB typical
  • Display Real, imaginary, magnitude or phase
  • Measurements: Spectrum, power spectral density, time record and 1/3 octave
  • Hardcopy output to printers and plotters
  • 3.5 inch disk drive
  • GPIB (IEEE-488) and RS-232 interfaces
  • Monitor: CRT Monochrome, 640 x 480 resolution
  • Connectors: BNC(f)
  • 100, 120/220, 240 Vac; 50/60 Hz operation
  • Weight: 36 lb; Size: 159 mm (6.25 in)H x 432 mm (17.0 in)W x 470 mm (18.5 in)D

Please see Datasheet for complete details and specifications.
