TDK-Lambda GEN 10-240 Programmable DC Power Supply, 0 to 10 V, 0 to 240 A

TDK-Lambda GEN 10-240 Programmable DC Power Supply, 0 to 10 V, 0 to 240 A

The GEN10-240 is part of the Genesys™ family of programmable AC/DC power supplies that sets a new standard for flexible, reliable power systems in OEM, Industrial, and Laboratory applications. Now available in more power levels (750W, 1.5kW, 2.4kW, 3.3kW, 5kW, 10kW, and 15kW) and with output voltages from 6 to 600V and current up to 1,000A. Active PFC, Standard RS-232/RS-485, and worldwide inputs are among the many standard features.

This member of the Genesys™ product family of programmable switching power supplies provides high power density, low ripple, and a complete set of user-friendly interfaces. In addition to high power density, it also features Active Power Factor Correction of 0.99 at full load, a first in this size and density.

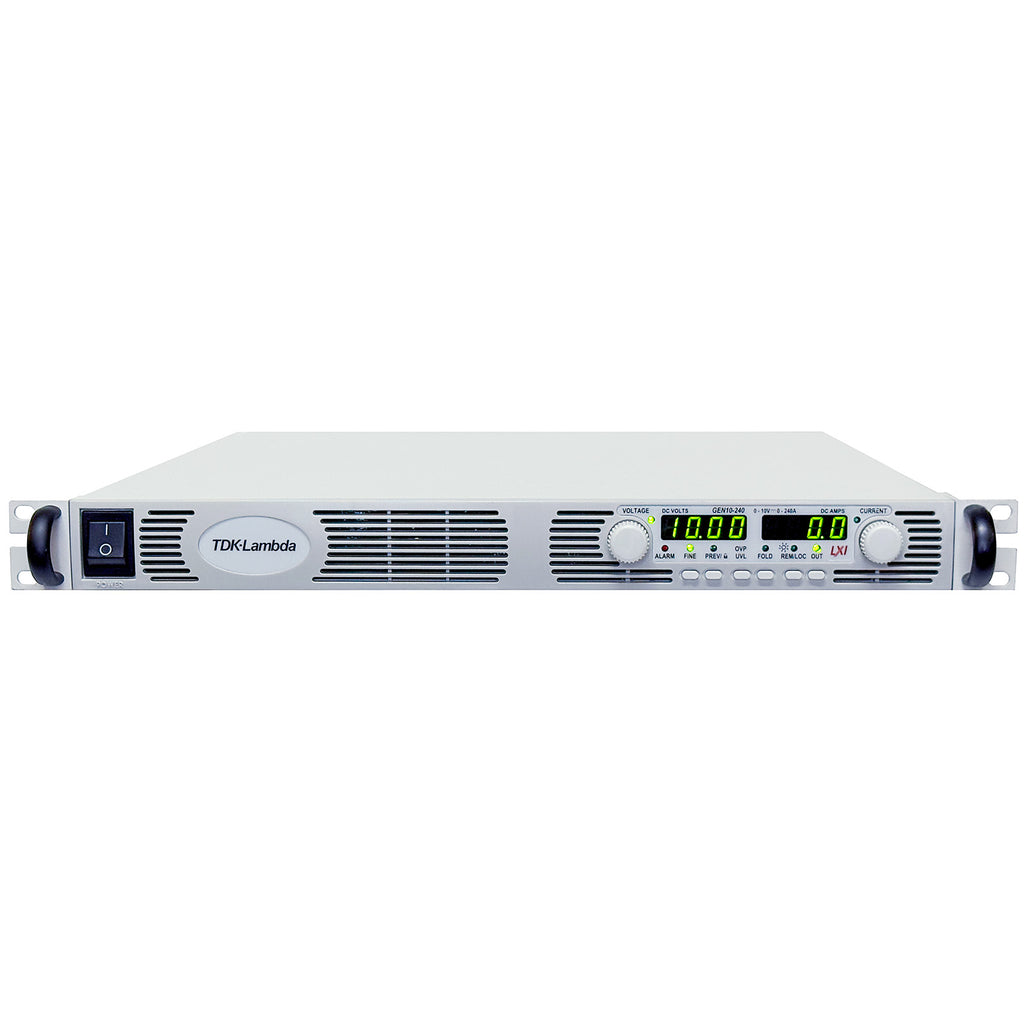

A user-friendly front panel provides reliable control through encoders selectable for fine or coarse adjustment (~6 or 30 turns), and four-digit LED Voltage and Current meters. Adjustable OVP, UVL, and Current Foldback provide further flexibility. Their set values may be previewed on the front panel display, even with Output Off. The Foldback may be set to latch output off if desired for safety.

All Genesys™ platforms include several other important features. Up to four like units may be connected in parallel and user-configured for the Master to Program and monitor the group's total current. Thus, four units can be combined into a single 3kW to 60kW power supply, increasing flexibility for system designers.

Significant safety features include Safe Re-Start and Last Setting Memory. With Safe Re-Start, the user can select whether the Genesys™ power supply returns to previous settings after powering off, or returns to zero (safe) output, waiting for user instructions. Last Setting Memory retains the settings for output voltage and current, remote or local mode, OVP and UVL, Foldback, Baud Rate, and Start-Up Mode without battery. Front Panel controls also include Output On/Off and Local/Remote Digital selection. The Front Panel may be locked locally or by software command.

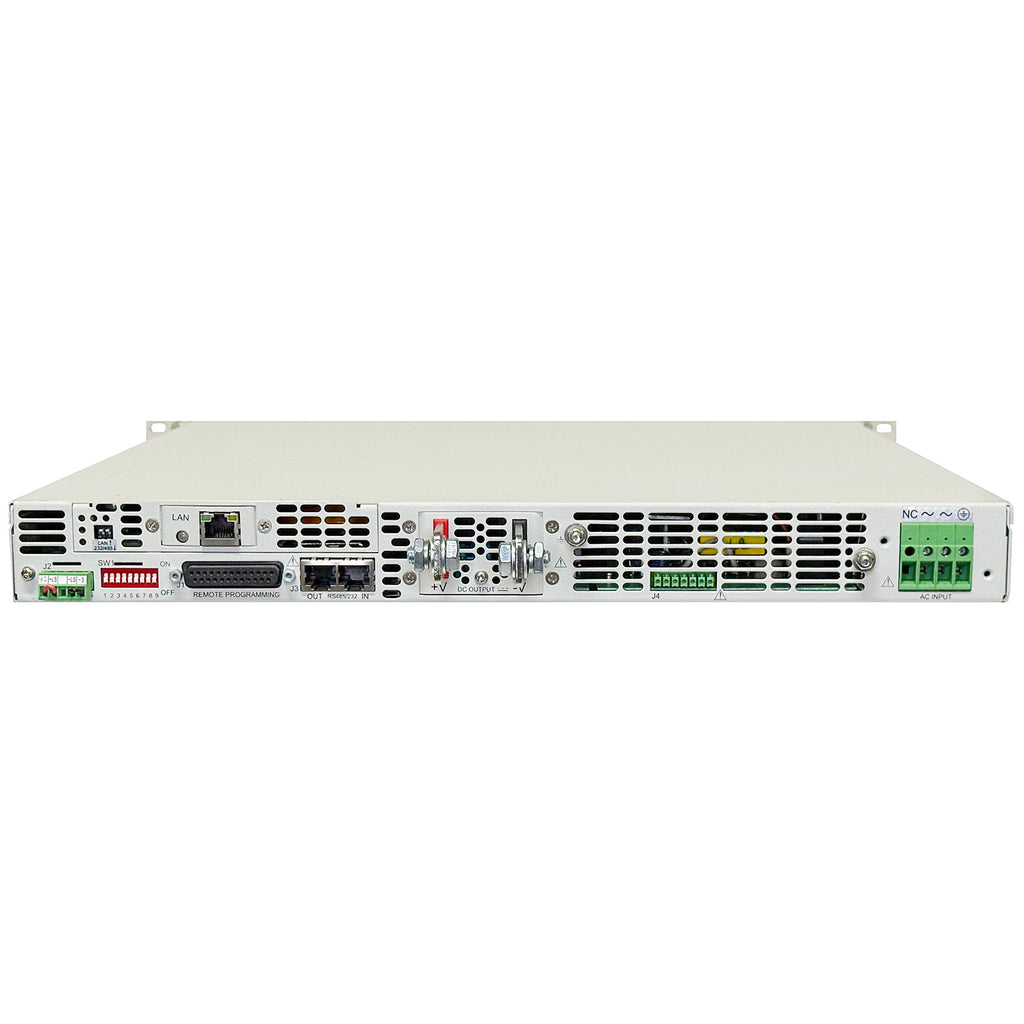

All Genesys™ products include a standard, embedded 16-bit RS-232/RS-485 digital interface. Through this digital interface, up to 31 power supplies may be controlled in a daisy chain over the RS-485 line. Analog remote programming is user-selectable between 0-5V and 0-10V via DIP switches on the rear panel. The design of Genesys™ power supplies is highly modular. SMT technology provides high reliability.

Optional LAN adds: LAN Interface (Complies with LXI Class C)

Features:

• 0 to 10 Vdc, 0 to 240 A
• 2400 W
• Input 170-265 Vac Continuous, Single Phase, 47/63 Hz
• Active Power Factor Correction (Single-Phase & Three-Phase AC Input)
• Output Voltage up to 600V, Current up to 300A
• Auxiliary Outputs 5V/0.2A; 15V/0.2A for increased system control functionality
• Built-in RS-232/RS-485 Interface Standard
• Global Commands for Serial RS-232/RS-485 Interface
• Auto-Re-Start / Safe-Start: user selectable
• Last-Setting Memory
• High Resolution 16-bit ADCs & DACs
• Low Ripple & Noise
• Front Panel Lock selectable from Front Panel or Software
• Reliable Encoders for Voltage and Current Adjustment
• Constant Voltage/Constant Current auto-crossover
• Parallel Operation with Active Current Sharing; up to four identical units.

• Independent Remote ON/OFF and Remote Enable/Disable
• External Analog Programming and Monitoring (user selectable 0-5V & 0-10V)
• Reliable Modular and SMT Design
• 19" Rack Mount capability for ATE and OEM applications

Please see the Datasheet for complete details and specifications.
