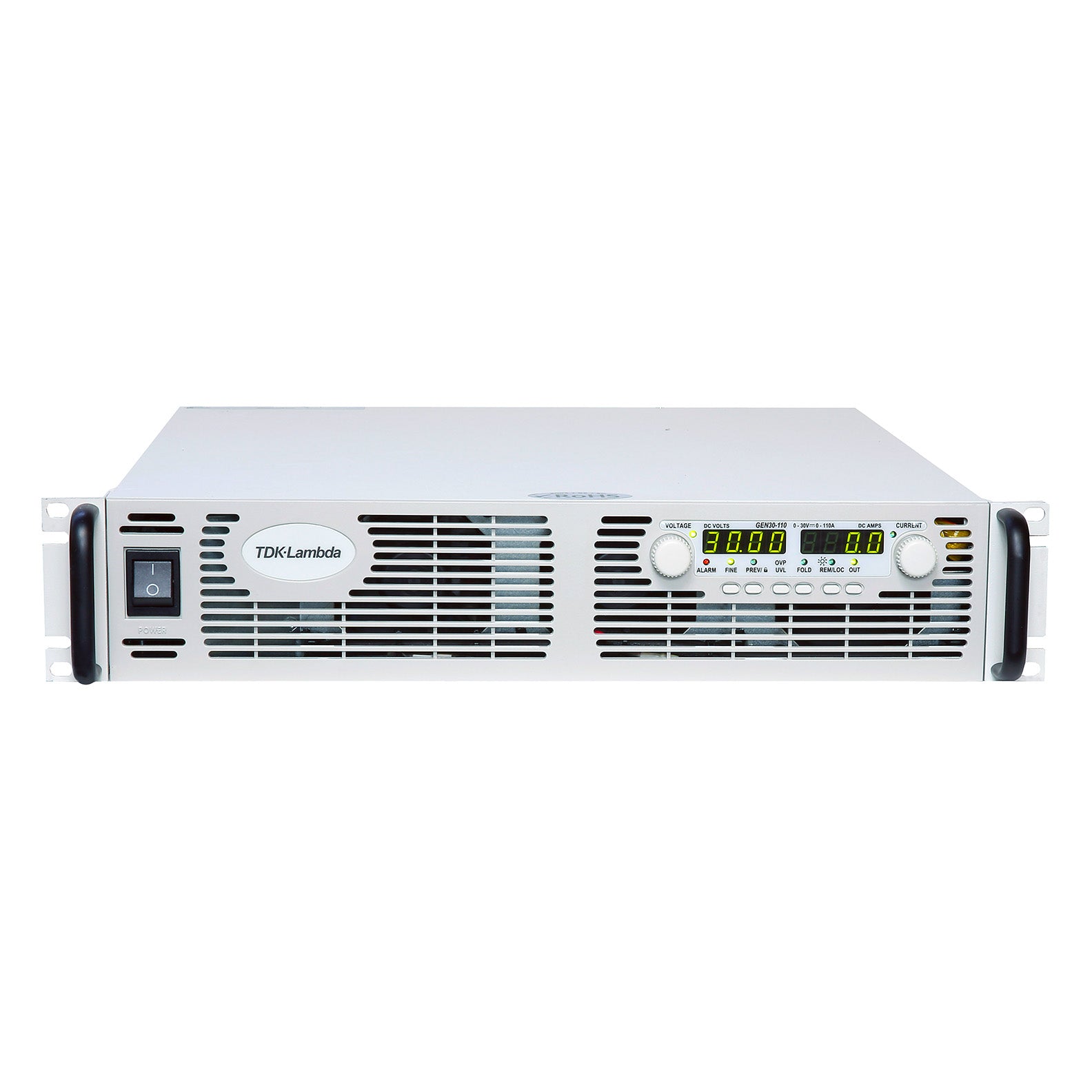

TDK-Lambda GEN 30-110 Programmable DC Power Supply 0 to 30 V, 0 to 110 A

TDK-Lambda GEN 30-110 Programmable DC Power Supply 0 to 30 V, 0 to 110 A

The GEN30-110 is part of the Genesys™ family of programmable AC/DC power supplies that sets a new standard for flexible, reliable power systems in OEM, Industrial, and Laboratory applications. Now available in more power levels (750W, 1.5kW, 2.4kW, 3.3kW, 5kW, 10kW, and 15kW) and with output voltages from 6 to 600V and current up to 1,000A. Active PFC, Standard RS-232/RS-485, and worldwide inputs are among the many standard features.

A user-friendly front panel provides reliable control through encoders selectable for fine or coarse adjustment (~6 or 30 turns), and four-digit LED Voltage and Current meters. Adjustable OVP, UVL, and Current Foldback provide further flexibility. Their set values may be previewed on the front panel display, even with Output Off. The Foldback may be set to latch output off if desired for safety.

All Genesys™ platforms include several other important features. Up to four like units may be connected in parallel and user-configured for the Master to Program and monitor the group's total current. Thus, four units can appear as a single 3 kW to 60 kW power supply, increasing flexibility for system designers.

Significant safety features include Safe Re-Start and Last Setting Memory. With Safe Re-Start, the user can select whether the Genesys™ power supply returns to its previous settings after power-off or to a zero (safe) output and waits for user instructions. Last Setting Memory retains the settings for output voltage and current, remote or local mode, OVP and UVL, Foldback, Baud Rate, and Start-Up Mode without battery. Front Panel controls also include Output On/Off and Local/Remote Digital selection. The Front Panel may be locked locally or by software command.

All Genesys™ products include a standard, embedded 16-bit RS-232/RS-485 digital interface. Through this digital interface, up to 31 power supplies may be controlled in a daisy chain over the RS-485 line. Analog remote programming is user-selectable between 0-5V and 0-10V via DIP switches on the rear panel. The design of Genesys™ power supplies is highly modular. SMT technology provides high reliability.

The Genesys™ Power Supply series can be configured into a programmable power system of up to 31 units using the built-in RS-232/RS-485 communication ports and the RS-485 linking cable provided with each power supply. In an optional GPIB or LAN system, each power supply can be controlled using the optional GPIB or LAN controller (factory-installed)

The following parameters can be programmed via the serial communication port: a) Output voltage setting. b) Output current setting. c) Output voltage measurement. d) Output ON/OFF control. e) Output current measurement. f) Foldback protection setting, g) Over-voltage protection setting and readback. h) Under-Voltage limit setting and readback. i) Power-supply startup mode (Last-Setting or Safe-Start mode).

Analog Voltage Programming and Monitoring: Analog control of the power supply is provided via isolated (SELV) inputs and outputs on the rear panel. The Output voltage and the Output current limits can be programmed using an analog voltage or a resistor, and can be monitored using an analog voltage. The power supply output can be remotely set to On or Off, and analog signals monitor its proper operation and operating mode (CV/CC).

Parallel Operation: GenesysTM HV power supplies with the same Output voltage and current rating can be paralleled in a Master-Slave configuration with automatic current sharing to increase the total available power.

Output Connections: Output connections are made to the rear panel via threaded studs. Either the positive or negative terminal may be grounded, or the output may be floated. All models shall not float their output more than +/- 1500 VDC above/below chassis ground. Contact the factory for assistance with higher float voltage applications. Local or remote sense may be used. In a remote sense, the voltage drop on the load wires should be minimized.

Features:

• 0 to 30 Vdc, 0 to 110 A
• 3.3 kW
• Input 170-265Vac, Three Phase, 47-63 Hz (Option 3P230)
• Active Power Factor Correction (0.99 Typical)
• Built in RS232/RS485 Interface
• Last Setting Memory; Front Panel Lockout
• Reliable Encoders for Voltage and Current Adjustment
• Constant Voltage/Constant Current Auto-Crossover
• Parallel Operation with Active Current Sharing
• Independent Remote ON/OFF and Remote Enable/Disable
• External Analog Programming and Monitoring
• Reliable Modular and SMT Design
• 19" Rack Mounted
• Worldwide Safety Agency Approvals
• CE Mark for LVD and EMC Regulation

Please see the Datasheet for complete details and specifications.
