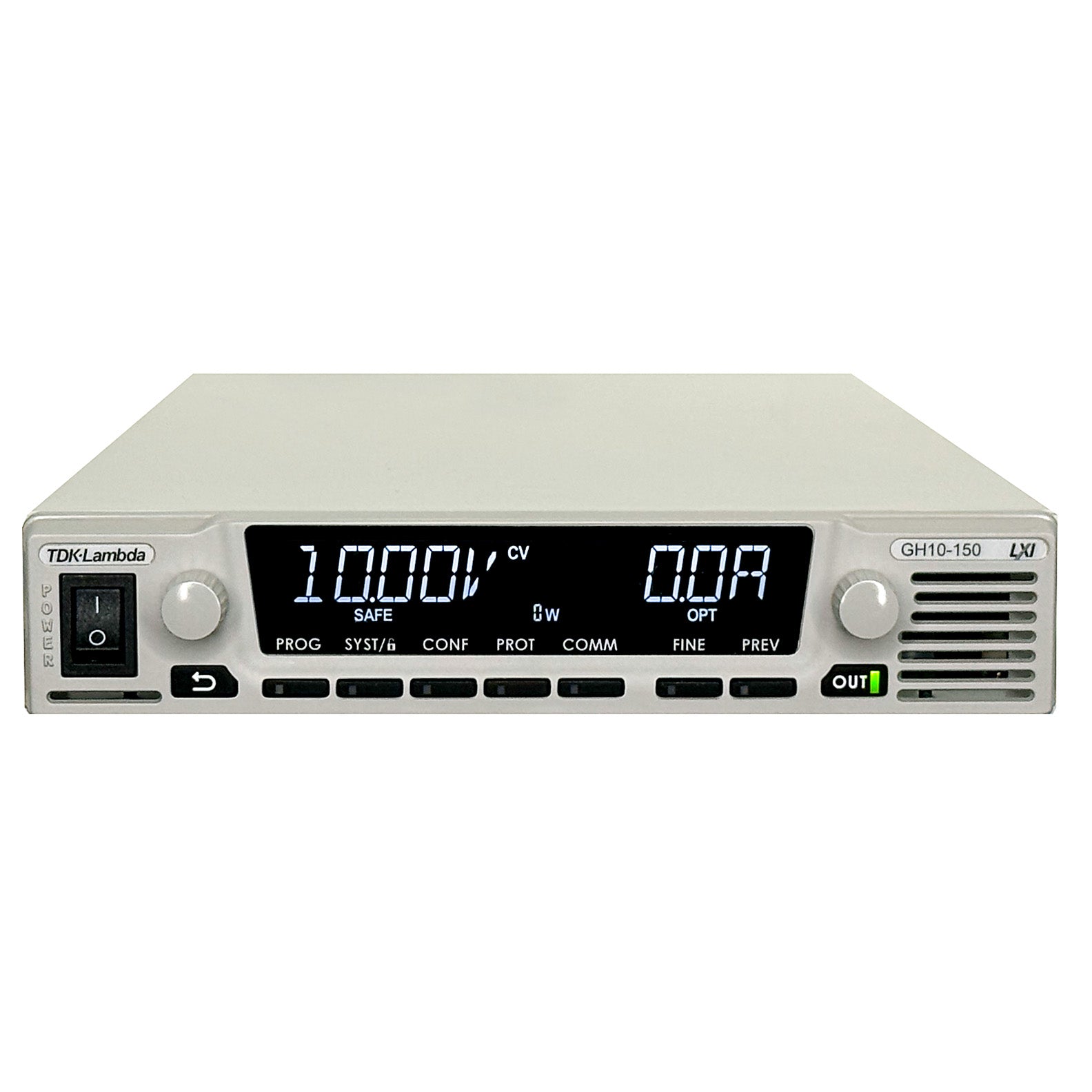

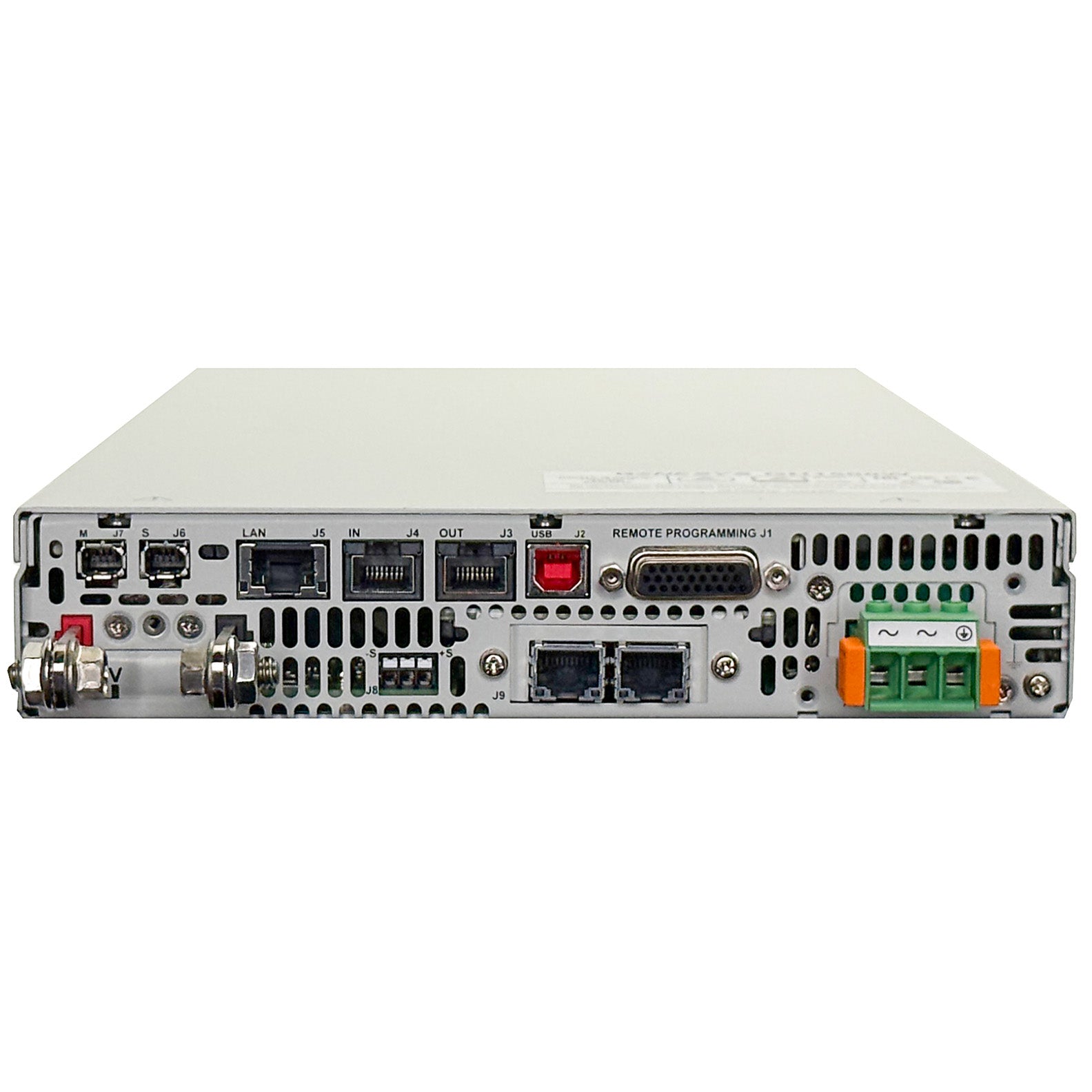

TDK-Lambda GENESYS+ GH10-150 Programmable DC Power Supply, 0 to 10 V, 0 to 150 A, 1500 W

TDK-Lambda GENESYS+ GH10-150 Programmable DC Power Supply, 0 to 10 V, 0 to 150 A, 150 W, LXI

The GH10-150 is part of the Genesys+™ family of Bench-Top/Rack-Mount Advanced Programmable DC Power Supplies that set a new standard for flexible, reliable power systems in OEM, Industrial, and Laboratory applications. The GENESYS+™ Series provides advanced features in lightweight, portable, high-power-density profiles with a comprehensive set of built-in, user-friendly interfaces, including a multifunctional front panel, LAN (LXI 1.5), USB (2.0), RS-232/RS-485, and Isolated Analog (5 V/10 V), as well as several optional digital communication interfaces.

The Universal AC Input (single-phase 85-265 VAC) has built-in Active Power Factor Correction (0.99/0.94 typical @ rated load).

Advanced features include Programmable V/I Slew-Rate control, Constant-Power Limit control, Arbitrary Waveform Generator w/ Auto-Trigger, Internal Resistance Programming, Pre-Load On/Off control, Trigger In/Out control, and Control Pins for Output Disconnect/Polarity Reversal.

All models are CE/UKCA Marked in accordance with the Low Voltage, EMC and RoHS Directives, and have worldwide Safety Agency approvals (UL/cUL/IEC/EN 61010-1).

• Arbitrary Waveform Generator with Auto-Trigger Capability
• Programmable Slew Rate Control (Vout/Iout)
• Constant Power Limit Operation
• Internal Resistance Programming
• Built-In Remote Isolated Analog Interface
• Built-In LAN (LXI 1.5), USB, and RS-232/RS-485 Interfaces

Optional MDBS adds Modbus-TCP Interface.

Features:

• 0 to 10 Vdc, 0 to 150 A
• 1500 W
• 1U height, 19” Half-Rack-mount
• Built-in LAN (LXI compliant), USB, RS-232/RS-485 Interface
• Multi-Drop capability (RS-485)
• Multi-functional front panel display
• Last-Setting Memory
• Auto-Start / Safe-Start: user selectable
• High Resolution 16-bit ADCs & DACs
• Arbitrary Waveform Generator with Auto-Trigger Capability
• Store up to 100 steps into four internal memory cells
• High-speed Programming
• Constant Voltage/Constant Current operation modes
• Constant Power (CP) Limit
• Slew-Rate Control (V/I)
• Internal Resistance Programming Simulation
• Local / Remote Sensing - software-controlled
• Built-In Remote Isolated Analog Program/Monitor and Control Interface
• Protection functions (OVP, UVP, UVL, FOLD (CV/CC), OCL, OTP, AC FAIL)
• Fan speed profile controlled by ambient temperature and load

• 19" Rack Mount capability for ATE and OEM applications
• Scalable Power Systems
• Parallel Systems with Auto-Configure
• Certified LabWindows™/CVI, LabVIEW™, and IVI Drivers
• Worldwide Safety Agency approvals
• CE Mark for Low Voltage, EMC, and RoHS3 Directives
• Size: Width(W) 214mm (8.43"), Height(H) 43.6mm (1.72"), Depth(D) 441.5mm (17.38")
• Light-weight <3.5 kg (7.7 lbs)
• Wide Range Input 85-265 Vac Continuous, Single Phase, 47/63 Hz


Please see the Datasheet for complete details and specifications.
