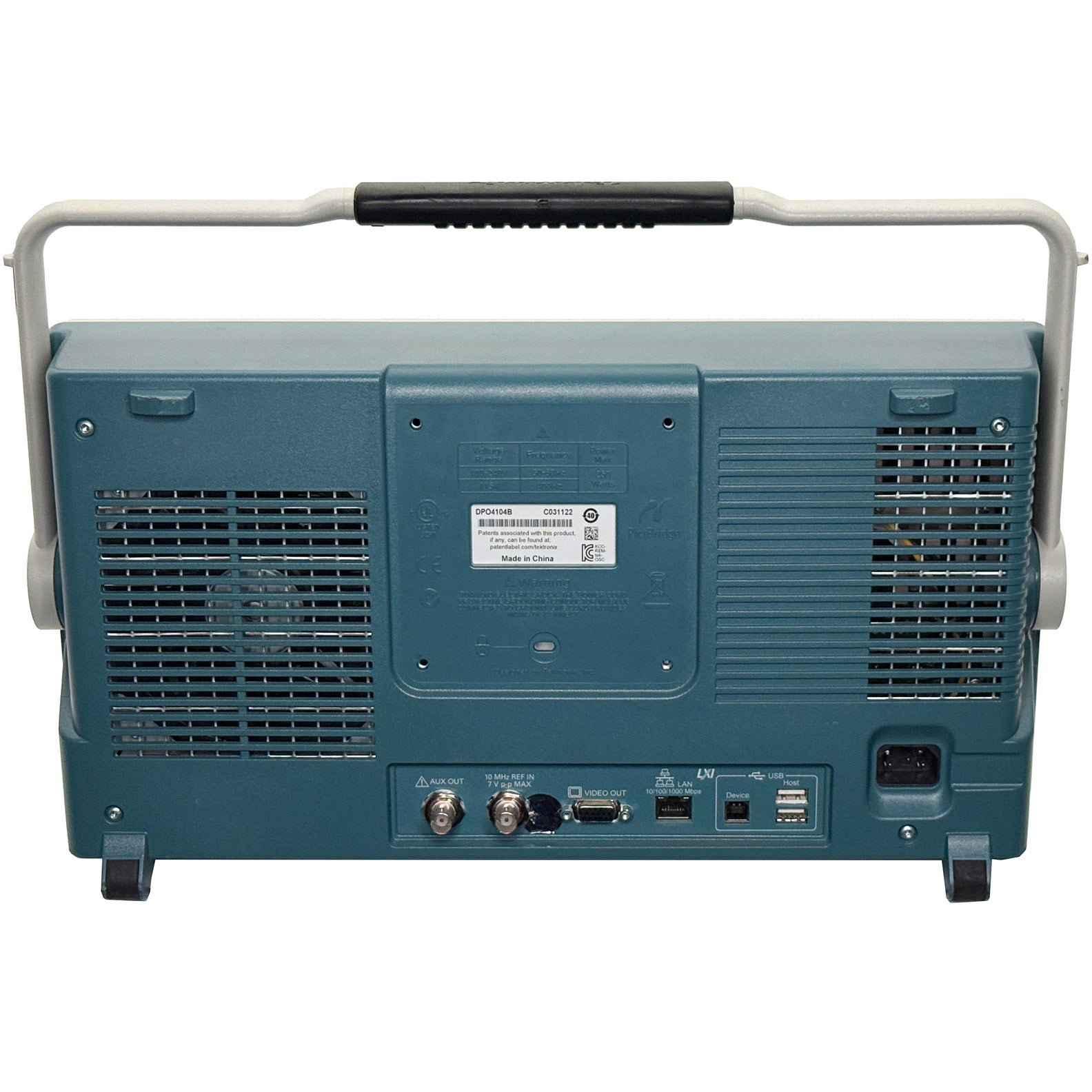

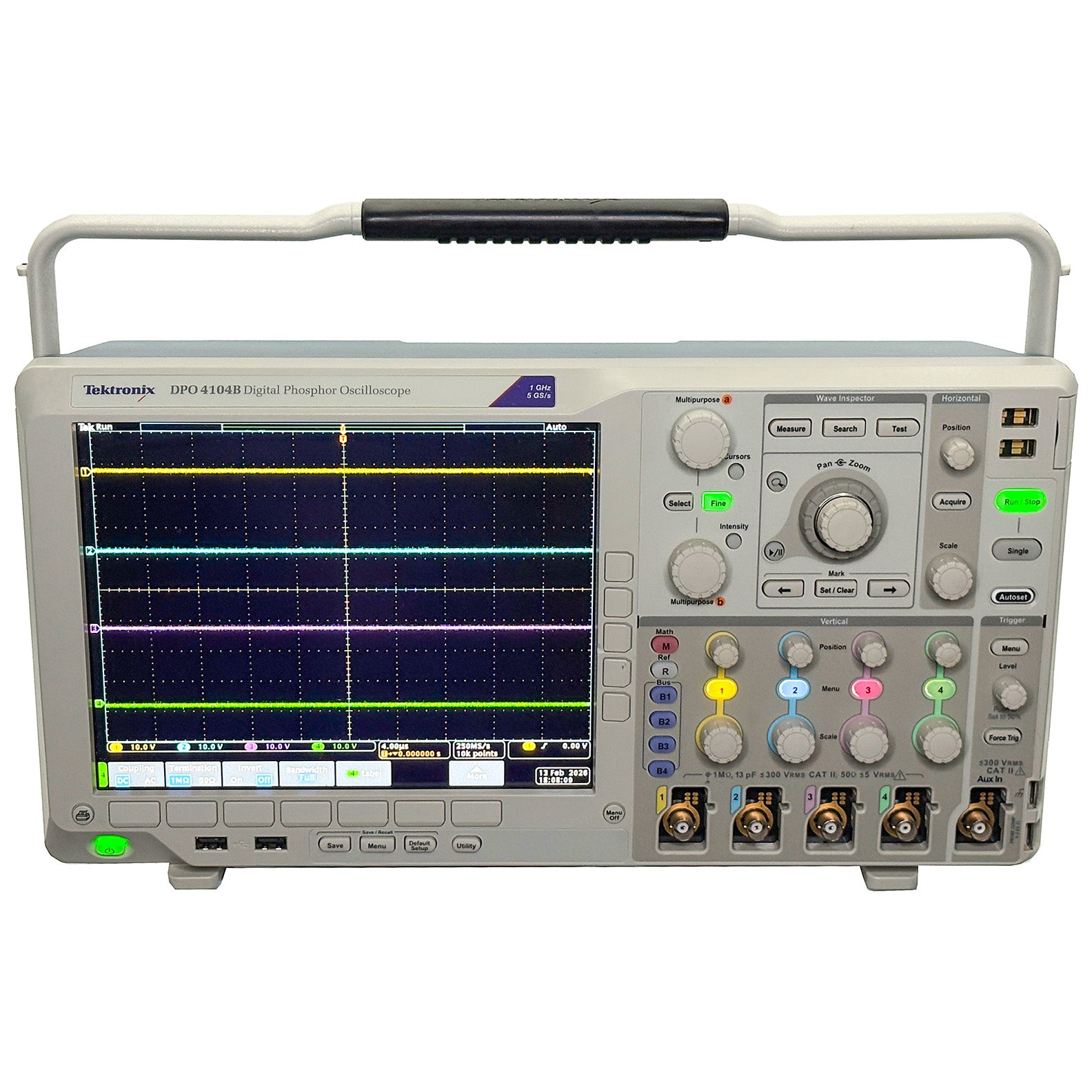

Tektronix DPO4104B Digital Phosphor Oscilloscope, 1 GHz, 4 Channel

Tektronix DPO4104B Digital Phosphor Oscilloscope, 1 GHz

The DPO4104B digital phosphor oscilloscope (DPO) delivers the performance you need to visualize even your most demanding signals. With a bandwidth of 1 GHz and offering a minimum of 5x oversampling on all channels and sin(x)/x interpolation standard. A fast waveform capture rate – greater than 340,000 waveforms per second with FastAcq® – enables you to see glitches and other infrequent transients within seconds, revealing the true nature of device faults. A digital phosphor display with color- and intensity-grading shows the history of a signal’s activity by using color or intensity in areas of the signal that occur more frequently, providing a visual display of just how often anomalies occur.

The DPO4000B Series offers a variety of analytical solutions, including cursors, 29 automatic measurements, statistics, and waveform math. Despite a tiny footprint (only 5.4 in. deep) and light weight (11 lb.), the DPO4000B Series offers exceptional performance, a large 10.4 in. XGA display and knob per channel vertical controls.

The TekVPI™ probe interface sets the standard for ease of use in probing. TekVPI probes feature status indicators and controls, as well as a probe menu button right on the comp box itself. This button opens a probe menu on the oscilloscope display, showing all relevant settings and controls for the probe. The TekVPI interface utilizes a new probe power management architecture enabling direct attachment of current probes without requiring a separate, bulky power supply. Finally, TekVPI probes can be controlled remotely through USB, GPIB, or Ethernet, enabling more versatile solutions in ATE environments.

Features:

• 1 GHz Bandwidth
• Sample Rates up to 5 GS/s on All Channels

• 4 Channels
• 10.4 in. (264 mm) bright XGA color display

• Up to 20 M record length on all channels
• >340,000 wfm/s maximum waveform capture rate

• Wave Inspector^® controls provide easy navigation and automated search of waveform data
• 42 automated measurements, and FFT analysis for simplified waveform analysis

• Optional serial triggering and analysis - automated serial triggering, decode, and search options for I²C, SPI, USB, Ethernet, CAN, LIN, FlexRay, RS-232/422/485/UART, MIL-STD-1553, and I²S/LJ/RJ/TDM
• USB and CompactFlash on Front Panel for Quick and Easy Storage
• Two USB 2.0 host ports on the front panel and two on the rear panel for quick and easy data storage and connecting a USB keyboard
• USB 2.0 device port on the rear panel for easy connection to a PC or direct printing to a PictBridge®-compatible printer
• Integrated 10/100/1000BASE-T Ethernet port for network connection and video out port to export the oscilloscope display to a monitor or projector

• e*Scope^® Remote Viewing and Control
• Interoperability with Tektronix Logic Analyzers
• TekVPI^® probe interface supports active, differential, and current probes for automatic scaling and units

• Small Footprint and Lightweight - Only 5.8 in. (147 mm) Deep and 11 lb. (5 kg)


Please see the Datasheet for complete details and specifications.
