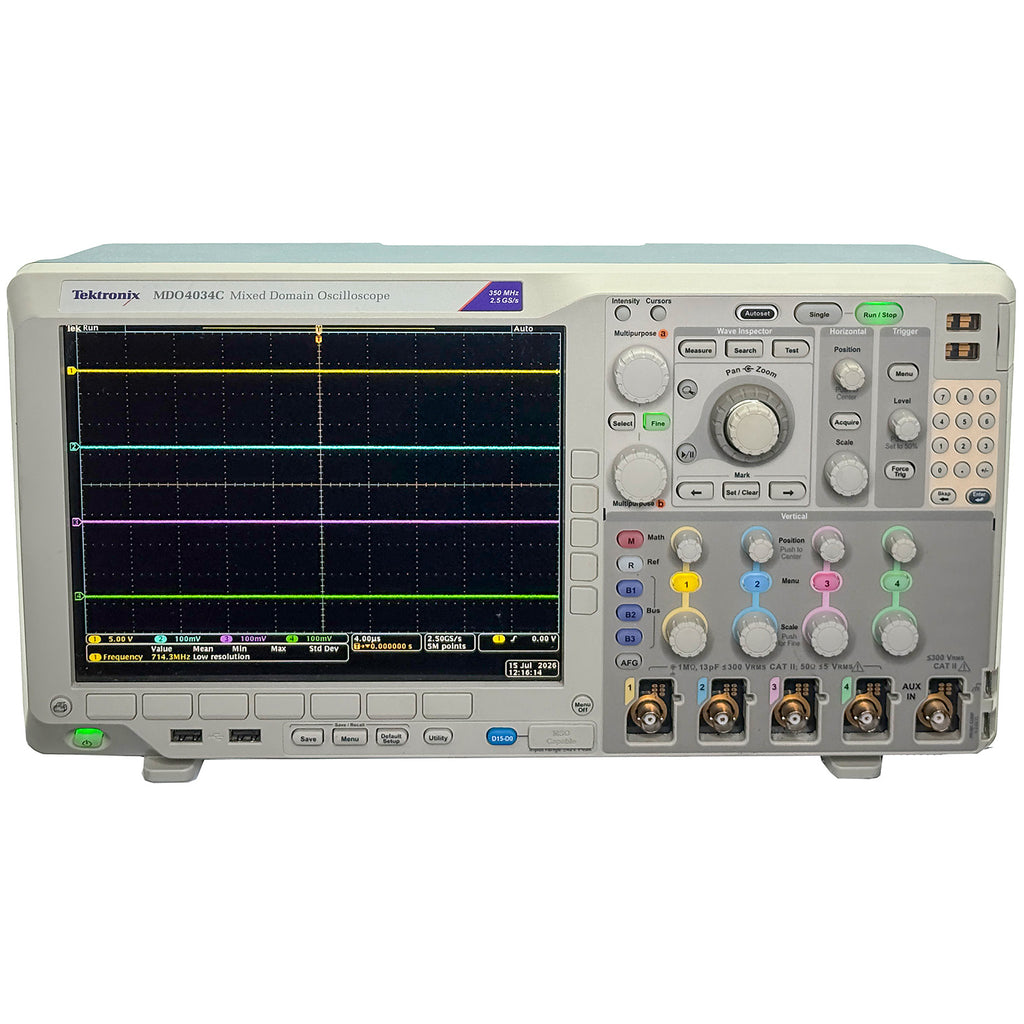

Tektronix MDO4034C Mixed Domain Oscilloscope, 350 MHz, 2.5 GS/s

Tektronix MDO4034C Mixed Domain Oscilloscope, 350 MHz, 5 GS/s

The 350 MHz MDO4034C 6-in-1 integrated oscilloscope optionally includes a spectrum analyzer, arbitrary/ function generator, logic analyzer, protocol analyzer, and DVM/frequency counter. When configured with an integrated spectrum analyzer, it is the only instrument that provides simultaneous, synchronized acquisition of analog, digital, and spectral data.

The MDO4034C is completely customizable and fully upgradable. Add the instruments you need now - or later. If your challenges include wireless module integration or EMI troubleshooting, this is the scope you want on your bench.

Digital Phosphor Technology with Fastacq™ High-Speed Waveform Capture
Digital phosphor technology with FastAcq provides you with fast insight into your device's actual operation. Its fast waveform capture rate - greater than 340,000 wfms/s - gives you a high probability of quickly seeing the infrequent problems common in digital systems: runt pulses, glitches, timing issues, and more.

Triggering
MDO4034C contains over 125 trigger combinations, providing a complete set of triggers - including runt, logic, pulse width/glitch, setup and hold violation, serial packet, and parallel data - to help quickly locate your event of interest. And with up to a 20 M record length, you can capture many events of interest.

Waveform Analysis and Histograms
The MDO4034C offers a comprehensive set of integrated analysis tools, including waveform and screen-based cursors, automated measurements, advanced waveform math including arbitrary equation editing, FFT analysis, waveform histograms, and trend plots for visually determining how a measurement is changing over time. Horizontal waveform histograms are especially useful for gaining insight into how much jitter is on a clock signal and what the distribution of that jitter is. Vertical histograms are especially useful for gaining insight into how much noise is in a signal and what its distribution is.

Wave Inspector^® Waveform Navigation and Automated Search
With long record lengths, a single acquisition can include thousands of screens of waveform data. Wave Inspector, the industry's best tool for waveform navigation and automated search, enables you to find events of interest in seconds. The integration of a spectrum analyzer enables the teaching of advanced wireless technology coursework while minimizing investment. Full upgradability enables the addition of functionality over time as needs change or budgets allow.

High Performance for Tough Challenges
20 M-point record length, flexible triggering and search, and 60.6 ps digital timing resolution help find elusive problems fast.

Unique Built-in Spectrum Analyzer (Optional)
Easily measure delays between control signals and radio transmissions. See time-domain signals alongside EMI emissions.

Digital Voltmeter (DVM) and Frequency Counter
The MDO4034C contains an integrated 4-digit digital voltmeter (DVM) and a 5-digit frequency counter. Any of the analog inputs can serve as the voltmeter source, using the same probes already attached for general oscilloscope use. The easy-to-read display offers you both numeric and graphical representations of the changing measurement values. The display also shows minimum, maximum, and average values of the measurement as well as the range of values measured over the previous five-second interval.

Upgradeability
Add analog bandwidth, spectrum analyzer, function generator, digital channels, or protocol analysis as you need them - ensuring usefulness for years to come.

Included: four (4) TPP500B, 500 MHz, 10x passive voltage probes, installation and safety instructions (on digital media), and a power cord.

Features:

Oscilloscope:

• 4 analog channels
• 350 MHz bandwidth

• Rise Time: 1 ns
• Input sensitivity range: 1 MΩ - 1 mV/div to 10 V/div; 50 Ω - 1 mV/div to 1 V/div
• Input impedance: 1 MΩ ±1% (13 pF), 50 Ω ±1%
• Time base range: 1 ns to 1000 s
• Up to 5 GS/s sample rate
• 20 M record length on all channels
• >340,000 wfm/s maximum waveform capture rate
• Standard passive voltage probes with 3.9 pF capacitive loading and 500 MHz analog bandwidth

Digital Voltmeter/Frequency Counter:

• 4-digit AC RMS, DC, and AC+DC RMS voltage measurements
• 5-digit frequency measurements

Overall:

• Display: 10.4 in. (264 mm) liquid-crystal TFT color display

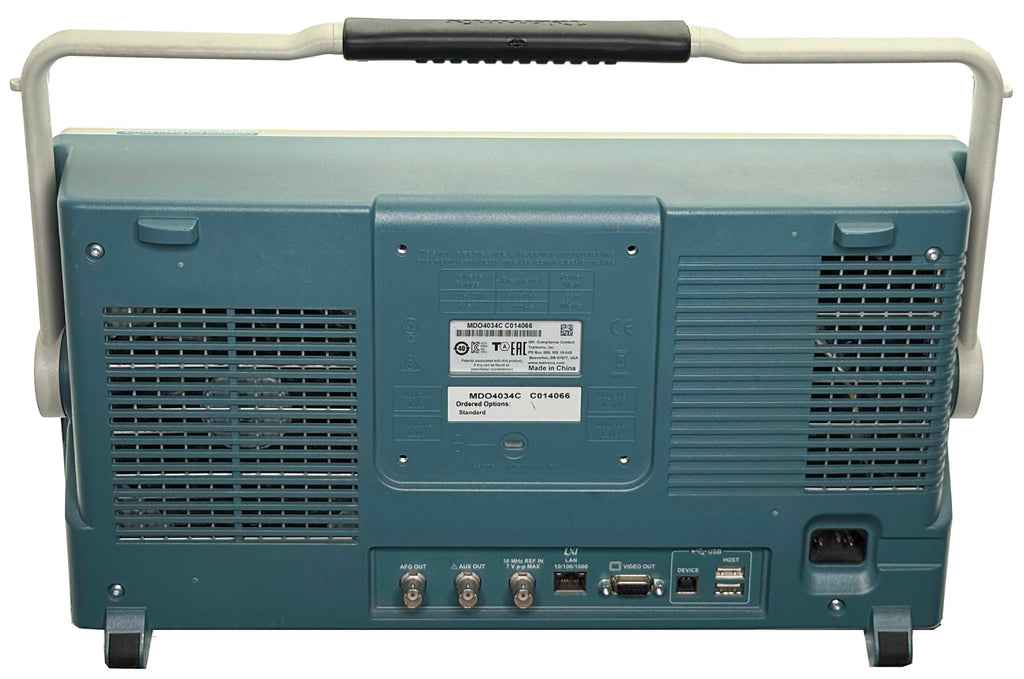

• USB, LAN, Video Out, Printer Interfaces
• Power Source Voltage: 100 to 240 Vac, 50 to 60 or 400 Hz
• Size (HxWxD): 9 in x 17.3 in x 5.8 in (229 mm x 439 mm x 147 mm)
• Weight: 11.2 lbs (5.1 kg)
• Shipping weight: 23.8 lbs (10.8 kg)

Please see the comprehensive Datasheet for complete details and specifications.
