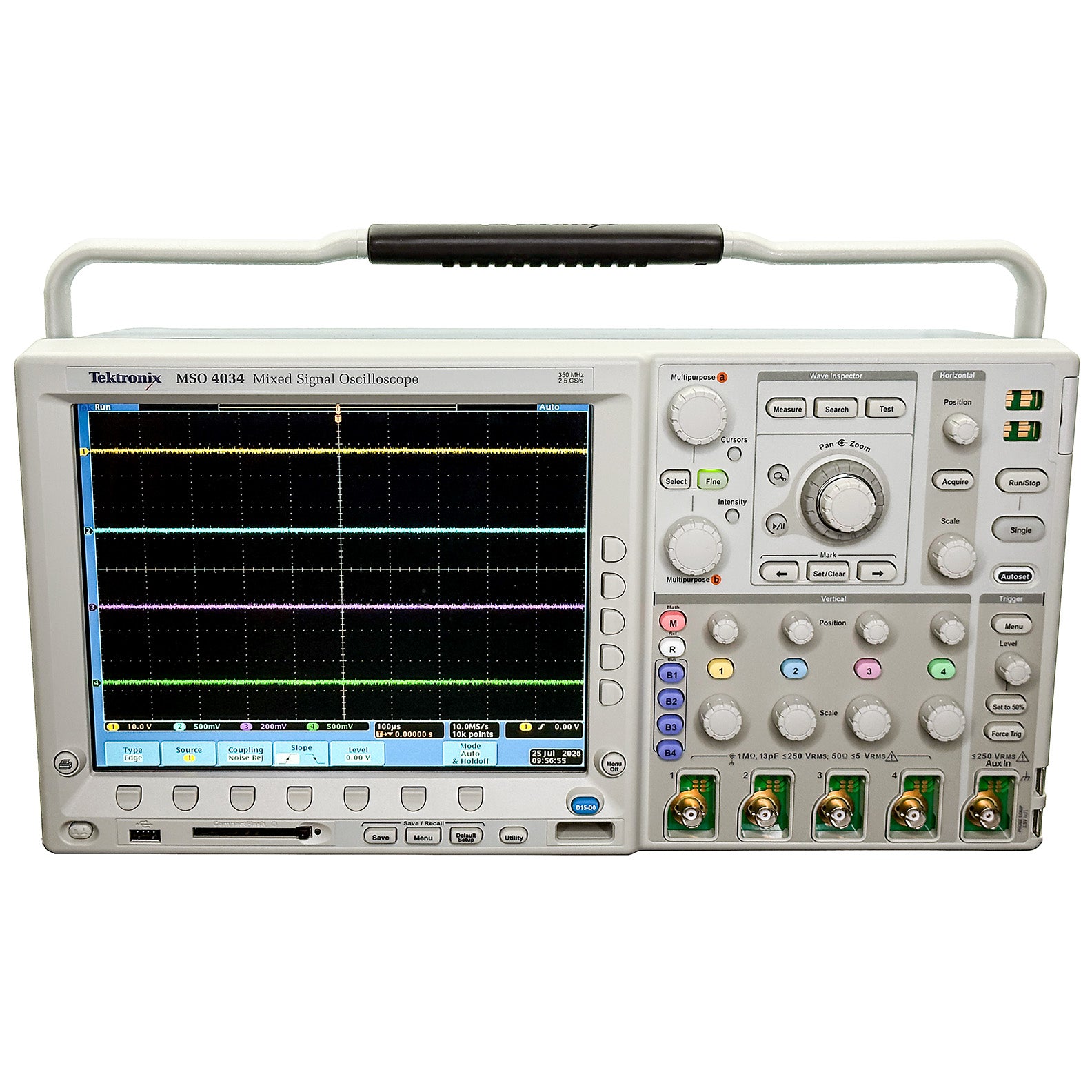

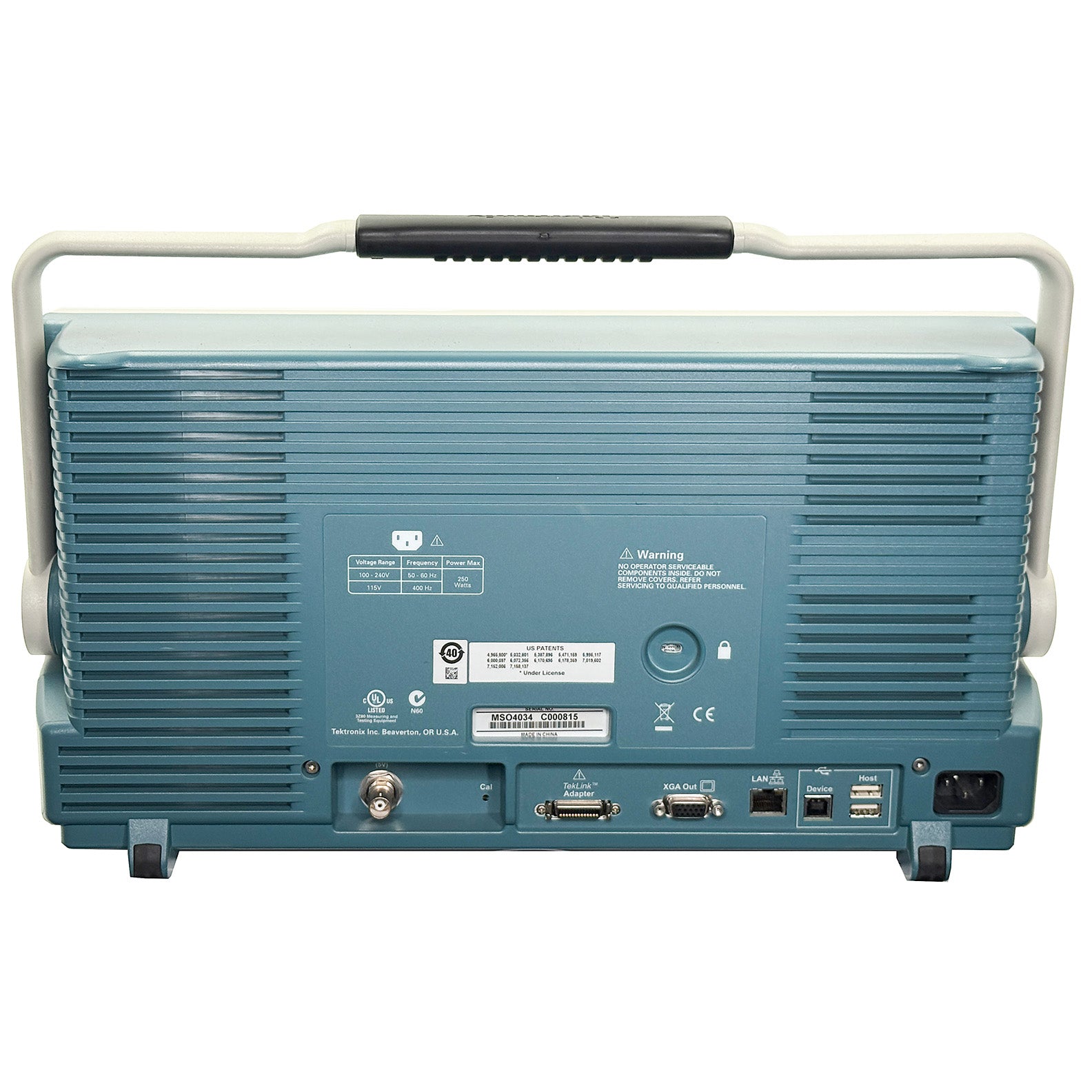

Tektronix MSO4034 Mixed Signal Oscilloscope, 350 MHz, 4 Channel, 2.5 GS/s
The MSO4034 features up to 350 MHz bandwidth and 2.5 GS/s sample rate. The MSO/DPO4000 Mixed Signal Oscilloscope Series delivers advanced debug features at an entry-level price. With up to 20 channels for analyzing analog and digital signals, you can quickly find and diagnose problems in complex designs. To capture long windows of signal activity while maintaining fine timing resolution, the MSO/DPO2000 offers a deep record length of 10 Mpoints standard on all channels.
With Wave Inspector® controls for rapid waveform navigation and automated serial and parallel bus analysis, the MSO/DPO4000 Oscilloscope Series from Tektronix provides the feature-rich tools you need to simplify and speed debug of your complex design.
Features:
- 350 MHz Bandwidth
- 4 Channels
- 16 Digital Channels
- Calculated Rise Time 5mV/div (typical): 1 ns
- Input Coupling: AC, DC, GND
- Input Impedance: 1 MΩ ±1%, 50 Ω ±1%
- Input Sensitivity 1 MΩ: 1 mV/div to 10 V/div
- Input Sensitivity 50 Ω: 1 mV/div to 1 V/div
- 2.5 GS/s Sample Rate on All Channels
- 10 Megapoint Record Length on All Channels
- 50,000 wfm/s Maximum Waveform Capture Rate
- Suite of Advanced Triggers
- Wave Inspector® Controls Provide Unprecedented Efficiency in Waveform Analysis
- I2C, SPI, CAN, LIN, FlexRay and RS-232/422/485/UART Serial Triggering and Analysis Options
- 10.4 in. (264 mm) XGA Color Display
- USB and CompactFlash on Front Panel for Quick and Easy Storage
- Built-in Ethernet Port
- Plug ‘n’ Play Connectivity and Analysis Software Solutions
- USB 2.0 Device Port for Direct PC Control of Oscilloscope using USBTMC
- Suite of Advanced Triggers
- e*Scope® Remote Viewing and Control
- Interoperability with Tektronix Logic Analyzers
- TekVPI™ Probe Interface Supports Active, Differential, and Current Probes for Automatic Scaling and Units
- HDTV and Custom Video Trigger Option
- 5.4 in. (137 mm) deep and 11 lbs. (5 kg)
- Shipping weight: 16 lb
Please see the Datasheet for complete details and specifications.
