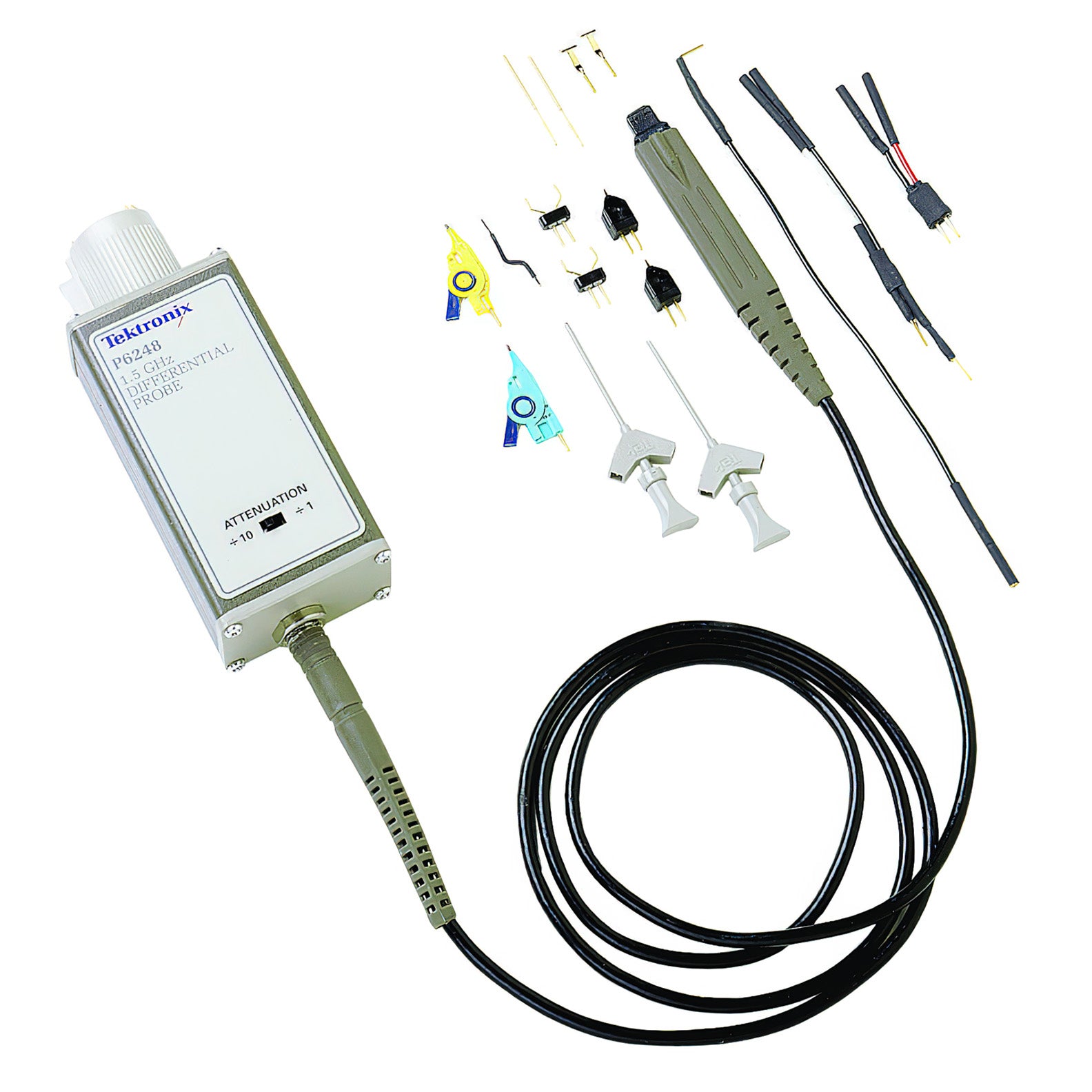

Tektronix P6248 Differential Probe, dc to 1.5 GHz

Roll over image to zoom in Click on image to zoom

Tektronix P6248 Differential Probe, dc to 1.5 GHz

The P6248 differential probe enables users to make time domain or frequency domain measurements on high bandwidth signals. It is used on TDS series oscilloscopes directly or on other instruments by using the 1103 power supply.

Features:

Bandwidth: dc to 1.5 GHz
Common input voltage range: ±7.0 V, 1X; ±7.0 V, 10X
Differential input voltage range: ±850 mV, 1X; ±8.5 V, 10X
Maximum input voltage: ±25 V (dc + peak AC)
Rise time: 265 pS
Input resistance: 200k ohms (differential); 100k ohms (common)
Input capacitance: <1 pF (differential); <2 pF (common)
Cable length: 4.0 feet
Shipping weight: 4 lb

Please see Datasheet for complete details and specifications.

PDF P6248
