Tektronix TBS2104B Digital Storage Oscilloscope, 100 MHz, 4 Channel

Tektronix TBS2104B Digital Storage Oscilloscope, 100 MHz, 4 Channel

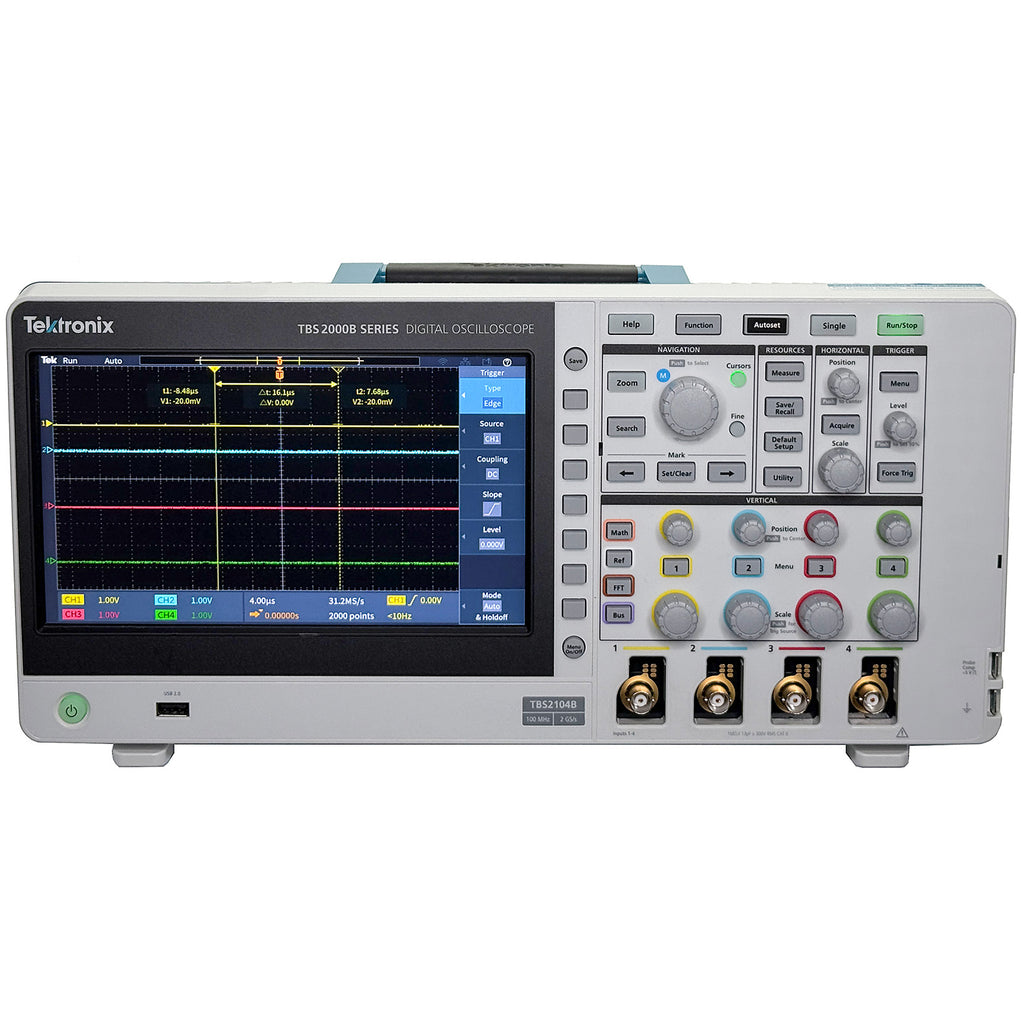

The TBS2104B with a 9-inch WVGA display, 5 million-point record length, and 2 GS/s sample rate captures and displays significantly more signal to help you debug and validate the designs faster. Easily and confidently analyze your signals with new on-waveform cursor readouts and 32 automated measurements, each with informative tips. The TekVPI® probe interface supports traditional passive BNC probes and enables broad application coverage with the latest active voltage and current probes.

The TBS2000B Series is designed for easy operation and quick hands-on learning. Dedicated controls provide quick access to important settings, so you can evaluate signals faster. With the TBS2104B, you get 10 vertical divisions and 15 horizontal divisions, so you can see more of your signal. The large display also offers more room for measurement results and menu information.

The Zoom function lets you quickly pan through the record and zoom in to see signal details. The new on-screen cursors overlay the cursor measurements on the screen, making them intuitive to read and understand.

Features:

• 100 MHz Bandwidth
• Sample Rate on each channel: 2 GS/s
• 4 Channels
• Input coupling: DC or AC
• Input impedance: 1 MΩ ± 1 %, 13 pF ± 1.5 pF
• Input sensitivity range: 1mV/div to 10 V/div
• Vertical resolution: 8 bits
• Vertical Range: 1 mV/div and 10 V/div
• Time Base Range: 1 ns/div to 100 sec/div

• Maximum input voltage, 1 MΩ: 300 VRMS, Installation Category II; with peaks ≤ ±450 V

• Trigger modes: Auto, Normal, and Single
• 9-inch WVGA color display with 15 horizontal grids shows 50%more signal
• TekVPI probe interface supports active, differential, and current probes with automatic scaling and units
• 32 automated measurements and FFT function for quick waveform analysis
• Search and Mark features for easy identification of events that occur in the acquired waveform
• HelpEverywhere® provides helpful on-screen tips for new users
• Built-in Scope Intro handbook provides operating instructions and
  oscilloscope fundamentals
• The instrument user interface and the front panel overlay are translated into 10 languages

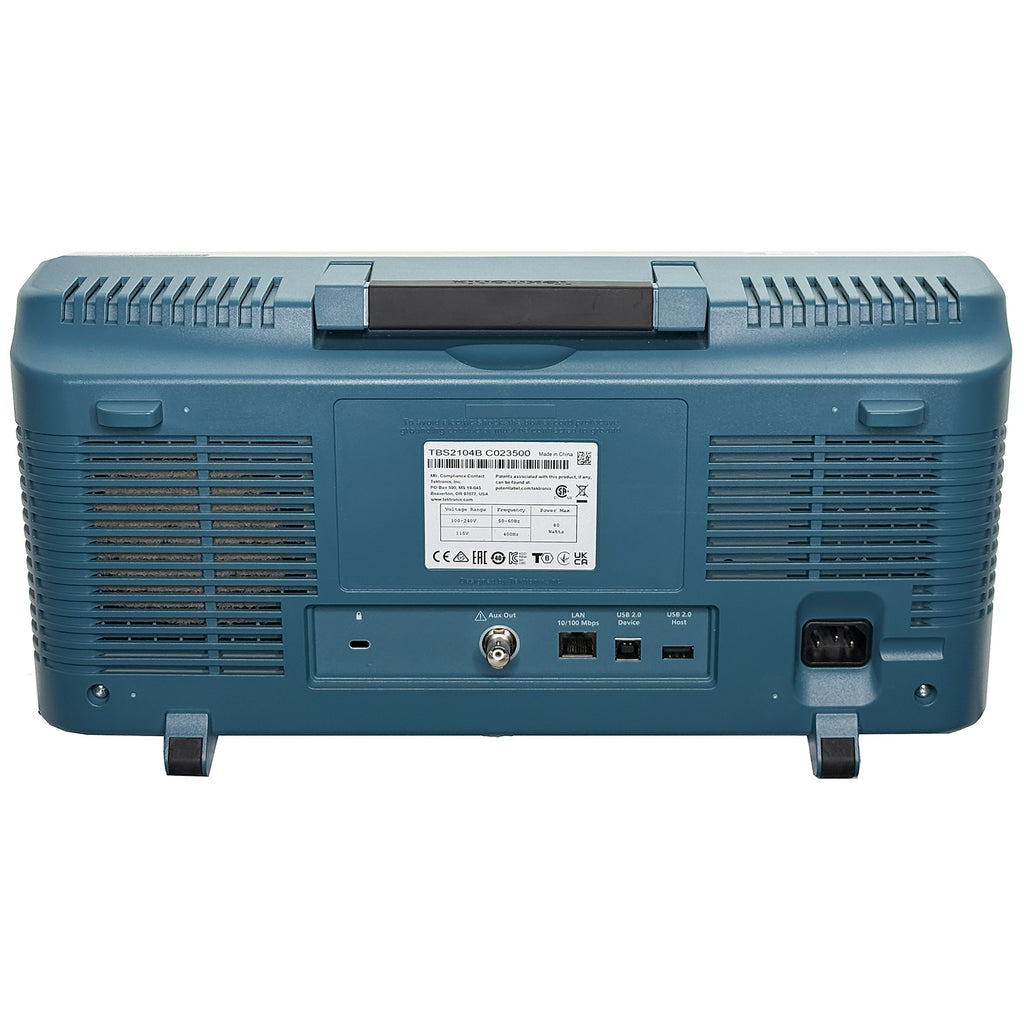

• Interfaces: USB, LAN

• Operation: 100 to 240 Vac ±10%, 47 Hz to 63 Hz (100 to 240 V), 360 Hz to 440 Hz (100 to 132 V)
• Weight: 4.17 kg (9.2 lbs.); Shipping Weight: 7 kg (15.4 lbs.)

Please see the Datasheet for complete details and specifications.
