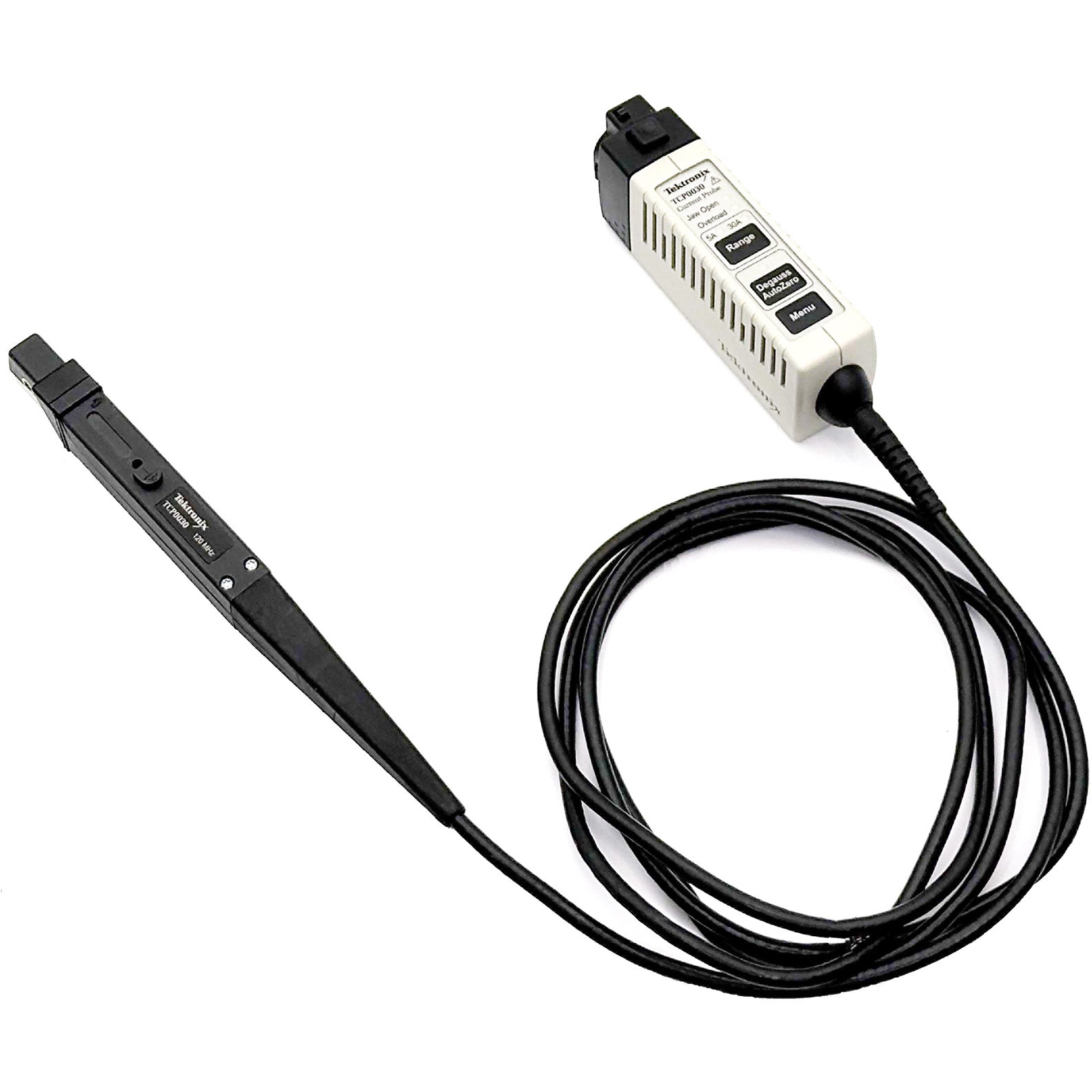

Tektronix TCP0030 Current Probe, AC/DC, 30 A, 120 MHz

Tektronix TCP0030 Current Probe, AC/DC, 30 A, 120 MHz

The TCP0030 is a high-performance, easy-to-use AC/DC Current Probe designed for use and direct connection (without the need of an additional power supply) to the TekVPI probe interface. This AC/DC current measurement probe provides greater than 120 MHz of bandwidth with selectable 5 A and 30 A measurement ranges. It also provides exceptional low-current measurement capability and accuracy to current levels as low as 1 mA, important for meeting today's challenging current measurement needs.

Features:

• DC to >120 MHz Bandwidth
• 30 A RMS Maximum Current Capability
• 50 A Peak Pulse Current Capability
• Easy-to-use and Accurate AC/DC Current Measurements Connects Directly to Tektronix Oscilloscopes that are TekVPI™ Probe Interface capable
• Provides Automatic Units Scaling and Readout on the Oscilloscope Display
• Split-core Construction Allows Easy Circuit Connection
• High Accuracy with Typically Less than 1% DC Gain Error
• Accurately Measures Current Levels as Low as 1 mA
• Low Noise and DC Drift
• Easy to Degauss and Autozero
• Setup Controls and Probe Status/Diagnostic Indicators are Provided on Both the Probe Hardware, and through an Easy-to-Access Oscilloscope UI Display Menu
• Safety Certified for U.S. and Canada
• Clips on conductors up to 0.15 inch diameter
• Cable length: 2 m
• Shipping weight: 5 lb

Please see Datasheet for complete details and specifications.
