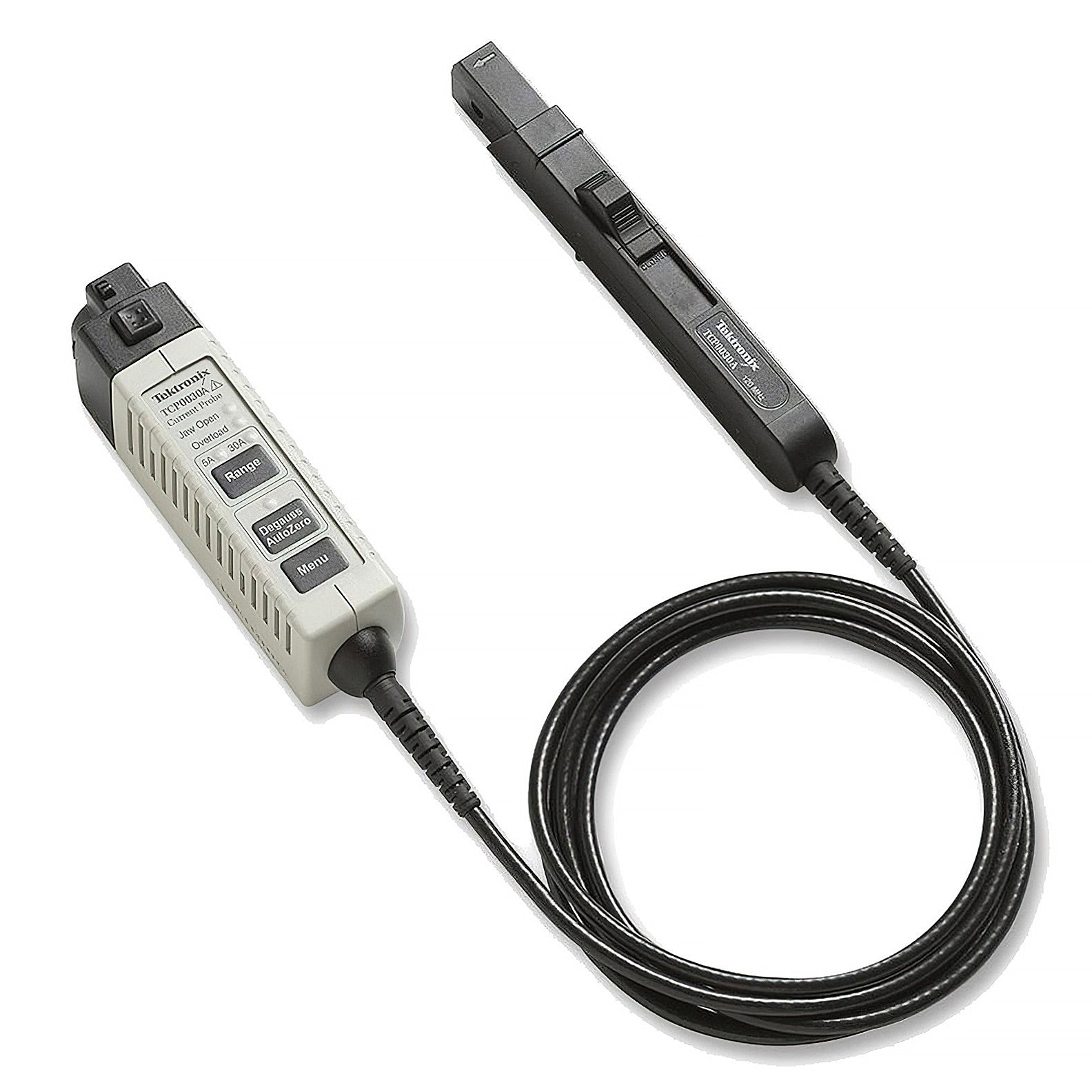

Tektronix TCP0030A Current Probe, AC/DC, 30 A, 120 MHz

Tektronix TCP0030A Current Probe, AC/DC, 30 A, 120 MHz

The TCP0030A is a high-performance, easy-to-use AC/DC Current Probe designed for use and direct connection (without the need of an additional power supply) to the TekVPI probe interface. This AC/DC current measurement probe provides greater than 120 MHz of bandwidth with selectable 5 A and 30 A measurement ranges. It also provides exceptional low-current measurement capability and accuracy to current levels as low as 1 mA, important for meeting today's challenging current measurement needs.

Features:

• DC to >120 MHz Bandwidth
• 30 A RMS Maximum Current Capability
• 50 A Peak Pulse Current Capability
• High accuracy with typically less than 1% DC gain error
• Accurately measures current levels as low as 1 mA
• Easy to-use and accurate AC/DC current measurements
• Intelligent communication with TekVPI oscilloscopes
  • Units scaling and readout. Automatic, on-screen readout of amps and magnitude. Manual setup is not required. Hand calculation from volts to amps is unnecessary
  • Push button degauss and Autozero functionality
  • Probe status and diagnostic indicator LEDs
  • Remote GPIB/USB probe control
• Split-core construction allows easy circuit connection
• High accuracy with typically less than 1% DC gain error
• Low noise and DC drift
• 3rd party safety certification
• Clips on conductors up to 0.15 inch diameter
• Cable length: 2 m
• Shipping weight: 5 lb

Please see Datasheet for complete details and specifications.
