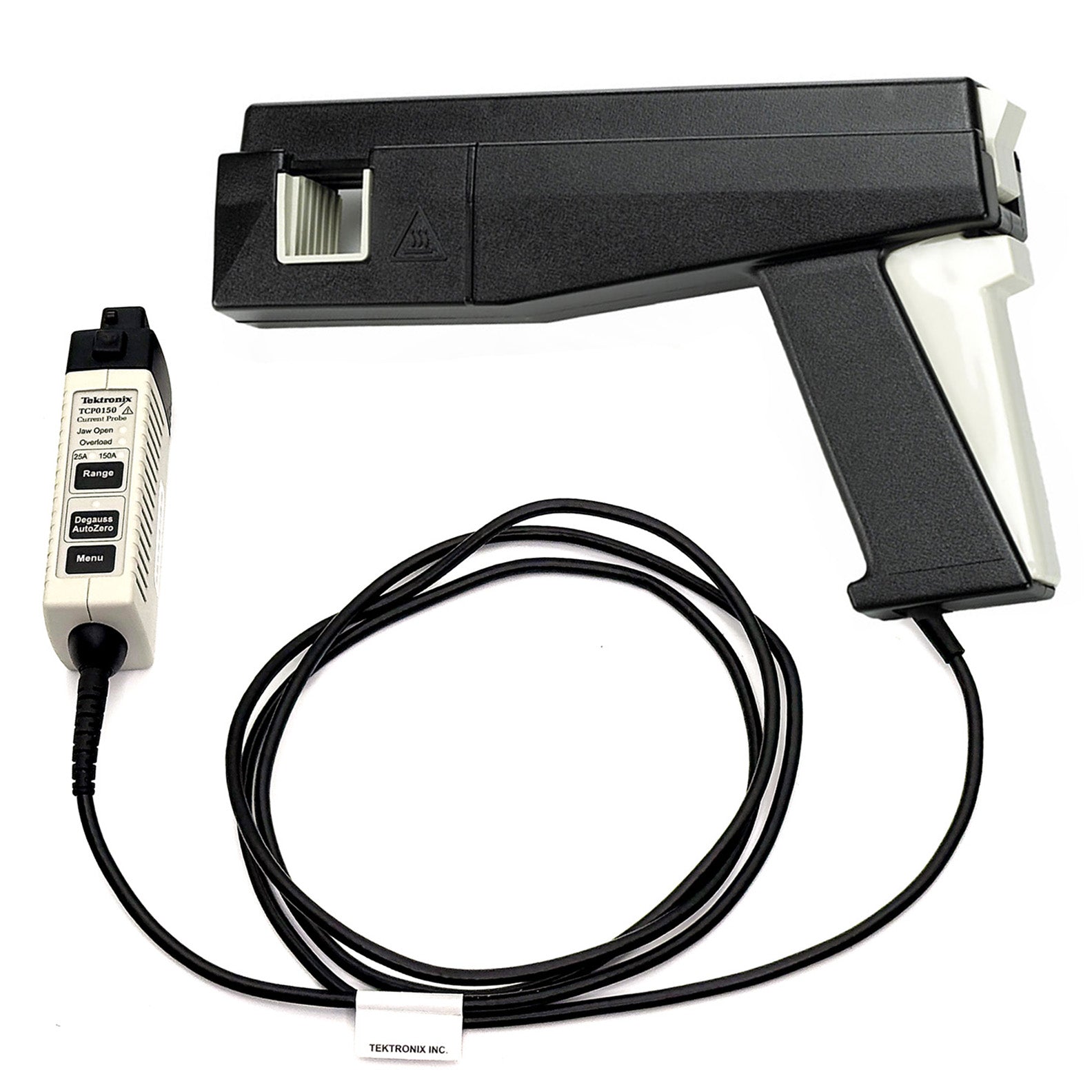

Tektronix TCP0150 Current Probe, AC/DC, 150 A, 20 MHz

Tektronix TCP0150 Current Probe, AC/DC, 150 A, 20 MHz

The TCP0150 current measurement probe provides 20 MHz of frequency bandwidth with selectable range control for 25 A and 150 A measurement range. It also provides low-current measurement capability and accuracy to current levels as low as 5 mA per division — important for achieving a broad dynamic current range of high-level and low-level measurement signals.

Features:

• DC to ≥20 MHz (-3 dB) Bandwidth
• Current ranges: 25 A and 150 A
• 150 A RMS Maximum Current Capability
• 500 A Peak Pulse Current Capability
• Easy-to-use and Accurate AC/DC Current Measurements
• Connects directly to Tektronix Oscilloscopes that are TekVPI™ Probe Interface capable
• Provides Automatic Units Scaling and Readout on the Oscilloscope Display
• Split-core Construction Allows Easy Circuit Connection
• Remote GPIB/USB probe control through the oscilloscope
• Low Noise and DC Drift
• High accuracy with typically less than 1% DC gain error
• Accurately measures current levels as low as 5 mA
• Easy to Degauss and Autozero
• Easy-to-use and accurate AC/DC current measurements

• Safety Certified for U.S. and Canada
• Max conductor diameter: 21 mm x 25 mm (0.83 in. x 1.0 in.)
• Cable length: 2 m
• Shipping weight: 5 lb

Please see the Datasheet for complete details and specifications.
