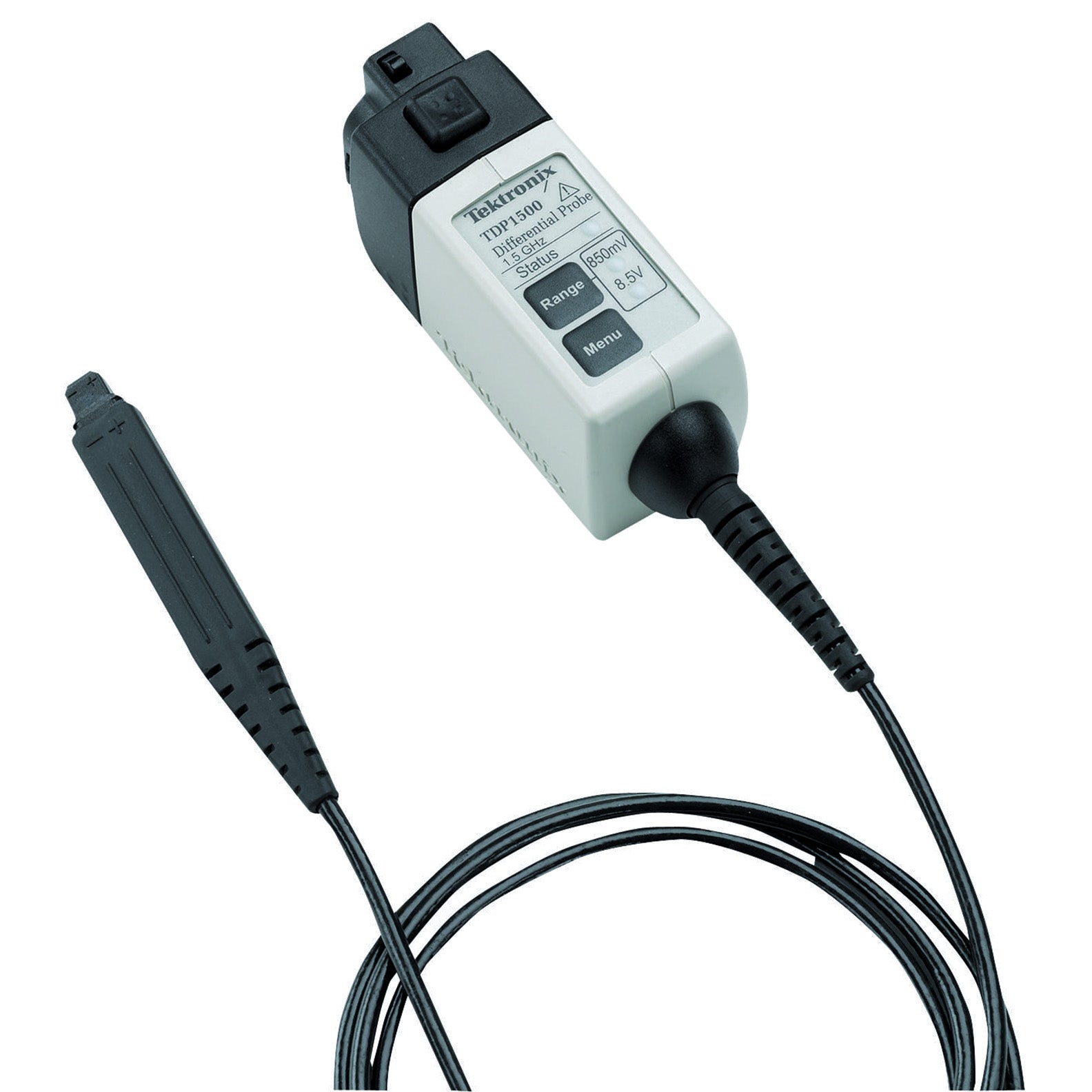

Tektronix TDP1500 Differential Probe, 1.5 GHz

Tektronix TDP1500 Differential Probe, 1.5 GHz

The TDP1500 Differential active probe provides truer signal reproduction and fidelity for high-frequency measurements. With ultra-low input capacitance and versatile device-under-test connection capabilities, the TDP1500 Differential-ended Active probe provides excellent high-speed electrical and mechanical performance required for today's digital system designs. This probe is designed to operate on TekVPI oscilloscopes without requiring the TPA-BNC adapter.

The TDP1500 Differential probe achieves high-speed signal acquisition and measurement fidelity by solving three traditional problems:

• DUT loading effects - Are reduced by lower input capacitance and high input resistance
• DUT connectivity - A variety of accessories exist for attaching to small SMDs, some come standard or recommended
• Maximizing the system (oscilloscope and probe) bandwidth - Probing solutions for all measurements for TekVPI interface oscilloscope models up to 1.5 GHz

Features:

• Bandwidth: 1.5 GHz
• Attenuation: 1X, 10X
• Rise time: <265 ps
• Differential Input Capacitance: ≤1 pF
• Differential Input Resistance: 200 kΩ
• Maximum input voltage (non-destruct): ±25 V (DC + pk AC)
• Cable length: 1.2 M
• Shipping weight: 4 lb

Please see the Datasheet for complete details and specifications.
