Description

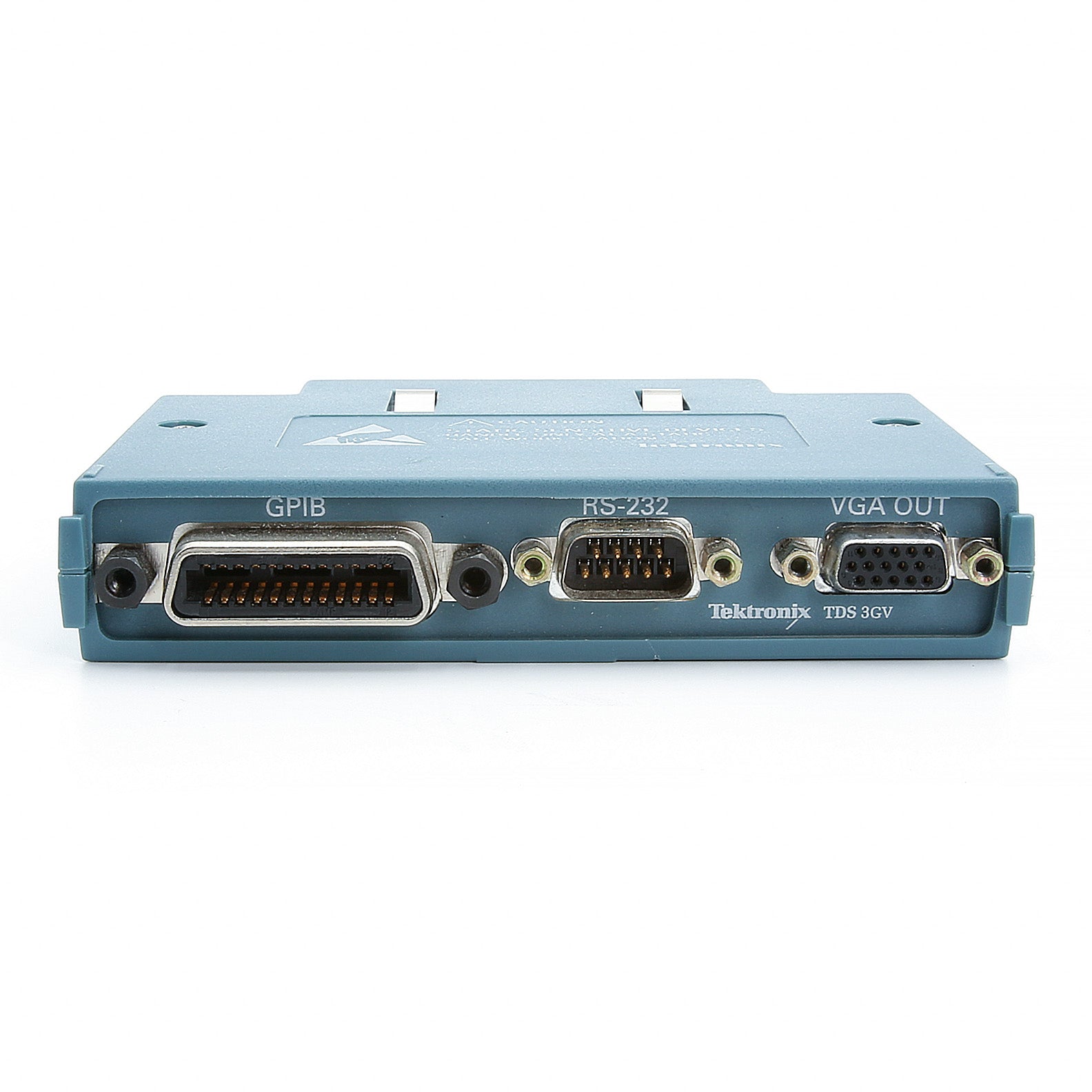

Tektronix TDS3GV GPIB, VGA, RS-232 Interface Module
The TDS3GV is a GPIB/VGA/RS232 Module for TDS3000 series oscilloscopes. Provides GPIB (IEEE-488.2) Programmability: Full talk/listen modes; Control of all modes, settings and measurements. RS-232-C Interface Programmability: Full talk/listen modes. Control of all modes, settings and measurements. Baud Rate up to 38,400. DB-9 male connector.
Features:
- GPIB (IEEE 488.2) programmability: Full talk/listen modes; control of all modes, settings and measurements
- VGA: Monitor output for direct display on large VGA-equipped monitors
- DB-15 female connector
- 31.6 kHz sync rate
- EIA RS-343A compliant
- RS-232-C interface programmability: Full talk/listen modes; control of all modes, settings and measurements
- Baud Rate up to 38,400
- DB-9 male connector
Please see Datasheet for complete details and specifications.
