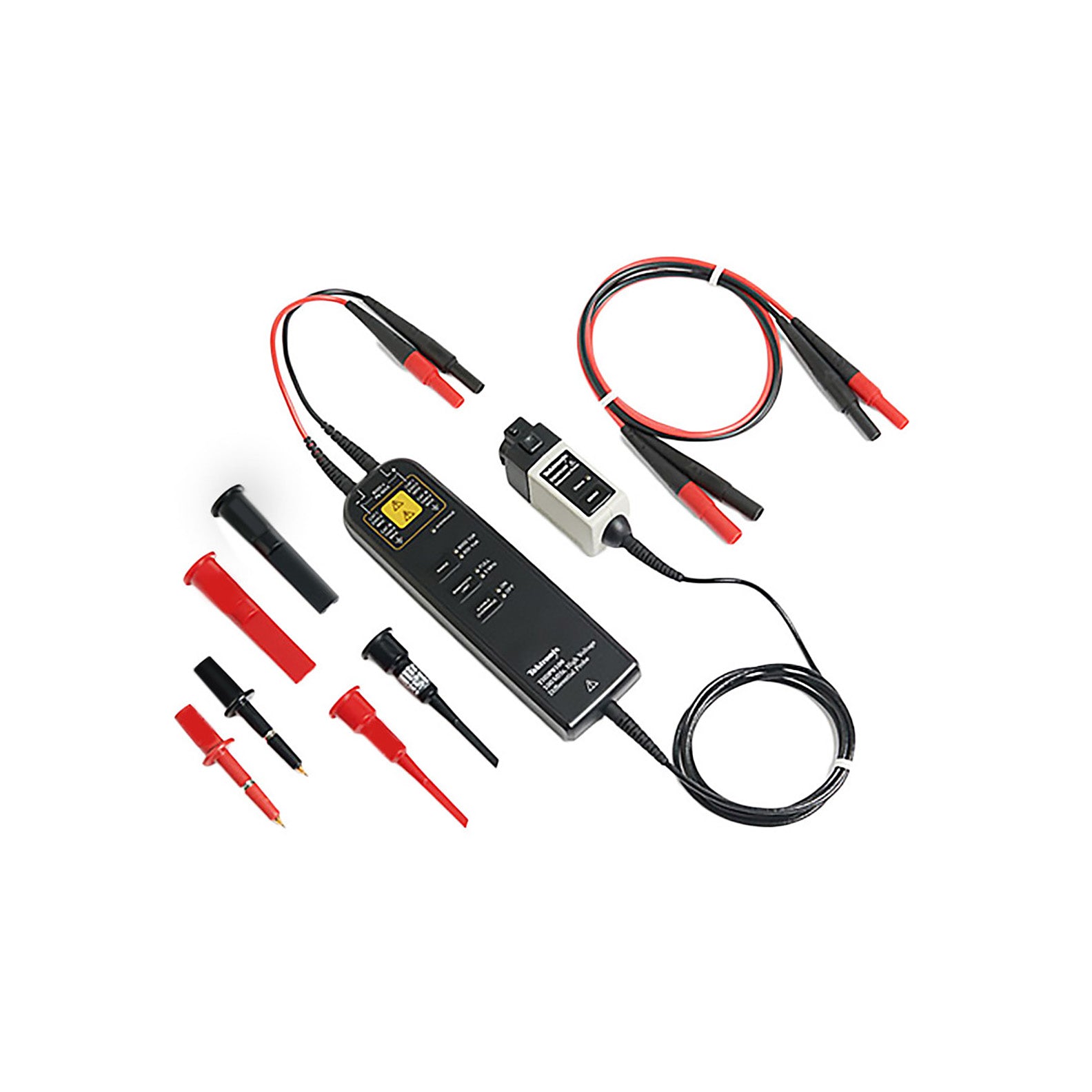

Tektronix THDP0100 High Voltage Differential Probe, 100 MHz

Tektronix THDP0100 High Voltage Differential Probe, 100 MHz

The THDP0100 High-voltage Differential Probe has the largest differential dynamic range capability from Tektronix, allowing users to safely measure up to ±6000 V. The THDP0100 supports bandwidths up to 100 MHz and slew rates up to 2500 V/ns at 1/1000 gain. These probes are supplied with two sizes of hook tips and have an overrange visual and audible indicator which warns the user when they are exceeding the linear range of the probe.

The TMDP and THDP Series probes are equipped with the TekVPI interface which allows smart communication between the oscilloscope and probe. Pushing the probe menu button will launch the probe control menu on the oscilloscope display providing access to all relevant probe settings and controls. These probes are designed to operate on TekVPI oscilloscopes without requiring the TPA-BNC adapter.

Features:

• Attenuation: 100X / 1000X
• Differential Voltage: 1000X: ±6000 V / 100X: ±600 V
• Common Mode Voltage: ±6000 V
• Maximum Input Voltage-to-Earth: 2300 V CAT I / 1000 V CAT III
• Bandwidth: 100 MHz
• Rise Time: <3.5 ns
• Slew Rate: <2500 V/ns at 1/1000 gain
• Input Impedance at the Probe Tip: 40 MΩ
• Cable length: 1.5 M
• Includes 2 small hook clips, 2 large hook clips, 2 probe tips

• Shipping weight: 4 lb

Please see the Datasheet for complete details and specifications.
