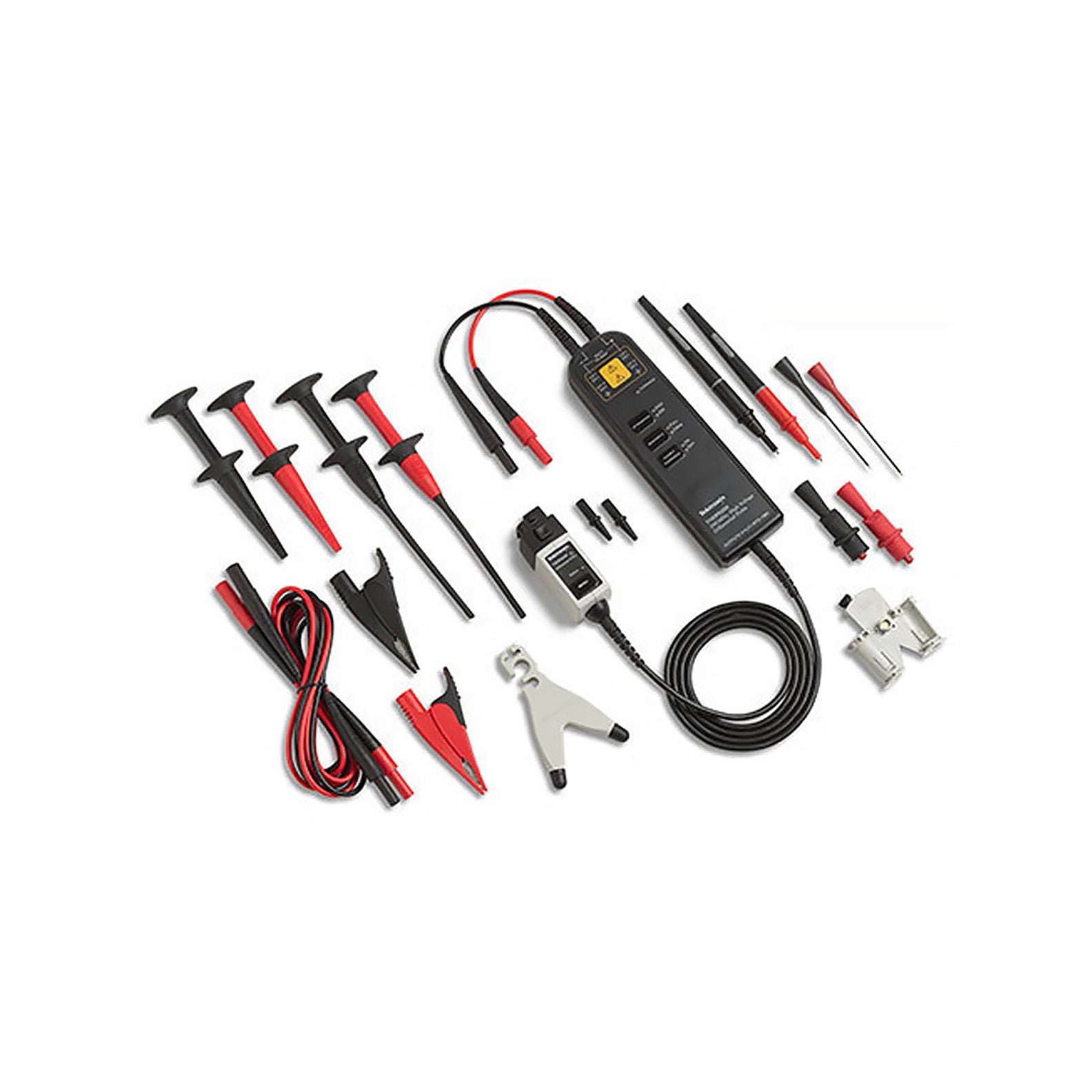

Tektronix THDP0200 High Voltage Differential Probe, 200 MHz

Tektronix THDP0200 High Voltage Differential Probe, 200 MHz

The THDP0200 High-voltage Differential Probe is capable of safely measuring differential voltages up to ±1500 V. The probes are effective in making measurements in IGBT circuits such as motor drives and power converters.

The TMDP and THDP Series probes are equipped with the TekVPI interface which allows smart communication between the oscilloscope and probe. Pushing the probe menu button will launch the probe control menu on the oscilloscope display providing access to all relevant probe settings and controls. These probes are designed to operate on TekVPI oscilloscopes without requiring the TPA-BNC adapter.

Features:

• Attenuation: 50X / 500X
• Differential Voltage: 500X: ±1500 V / 50X: ±150 V
• Common Mode Voltage: ±1500 V
• Maximum Input Voltage-to-Earth: 1000 V CAT I / 600 V CAT III
• Bandwidth: 200 MHz
• Rise Time: <1.8 ns
• Slew Rate: <650 V/ns at 1/500 gain
• Input Impedance at the Probe Tip: 10 MΩ
• Cable length: 1.5 M
• Includes 2 Hook clips AC280-FL, 2 Pincer clips AC283-FL, 2 Alligator clips AC285-FL, 2 Extension cables, Test leads

• Shipping weight: 4 lb
