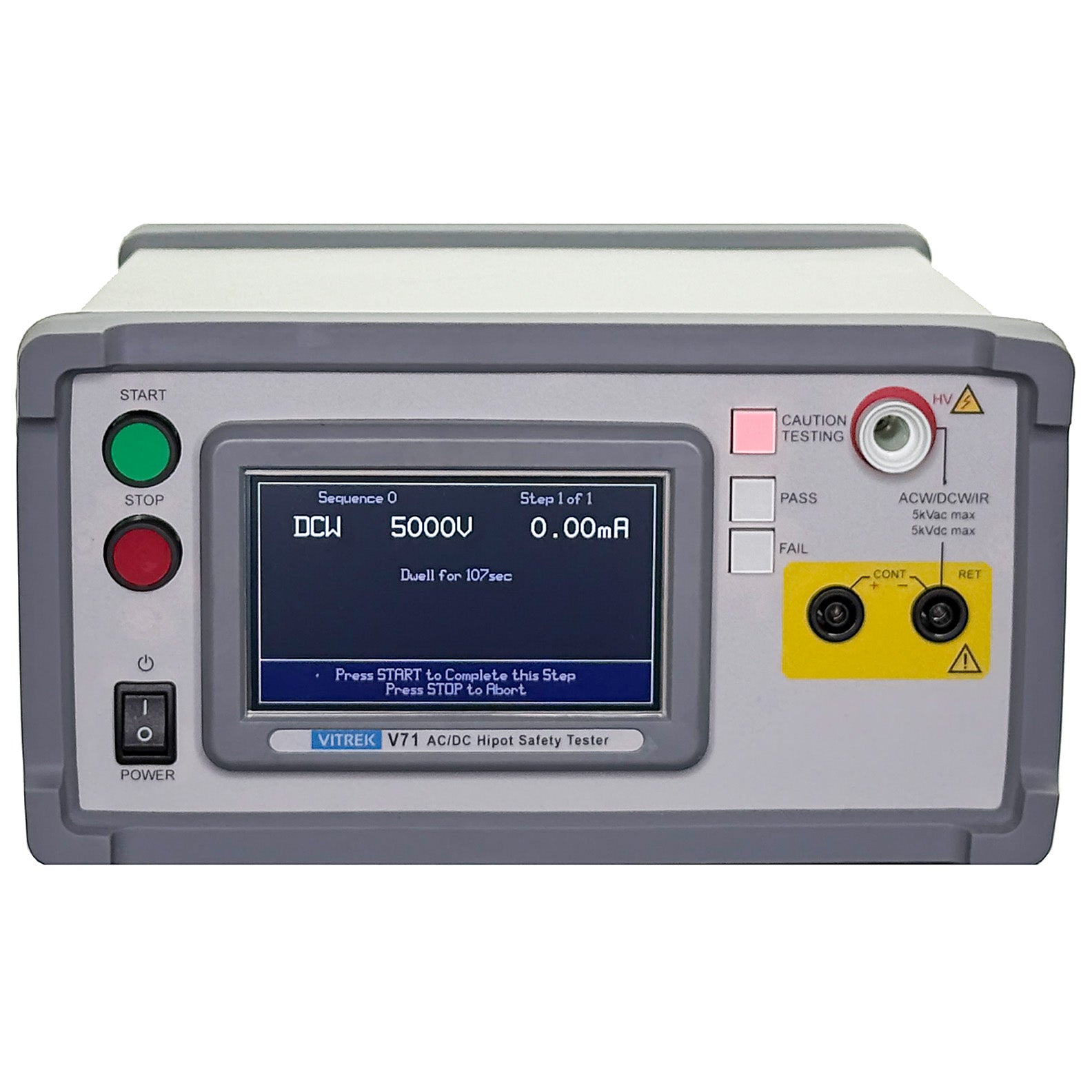

Vitrek V71 AC/DC Hipot Tester, Electrical Safety Tester with Continuity, 5 kV AC/DC

Vitrek V71 AC/DC Hipot Tester, Electrical Safety Tester with Continuity, 5 kV AC/DC

The V71 5 kV AC/DC Hipot Tester features a color touch LCD and high-speed DSP technology. The compact and rugged V71 sets the standard for price/performance ratio. Made in the U.S.A. to meet tough UL, CSA, TUV, and IEC Hipot requirements. The V71 provides unbeatable speed, accuracy, user safety, and reliability.

Features:

• AC Hipot Output Voltage 10 to 5000 V
• AC Max Load Current: 20 mArms
• AC Leakage Current Accuracy: 1% of reading +5 µA
• AC Leakage Current Resolution: 1 µA
• AC Resolution: 1 V at all levels
• DC Hipot Output Voltage 20 to 5000 V

• DC Max Load Current: 10 mA
• DC Leakage Current Accuracy: 1% of reading +1 µA
• DC Leakage Current Resolution: 0.1 µA
• DC Resolution: 1 V at all levels
• 4.3" Color Touch Display - Easy-to-Use Intuitive User Interface
• Made in the USA
• Compact, Lightweight, Rugged, Fan Free, Fast (100 mS min test time) and Accurate

• Low Cost of Ownership-Two Year Calibration Interval

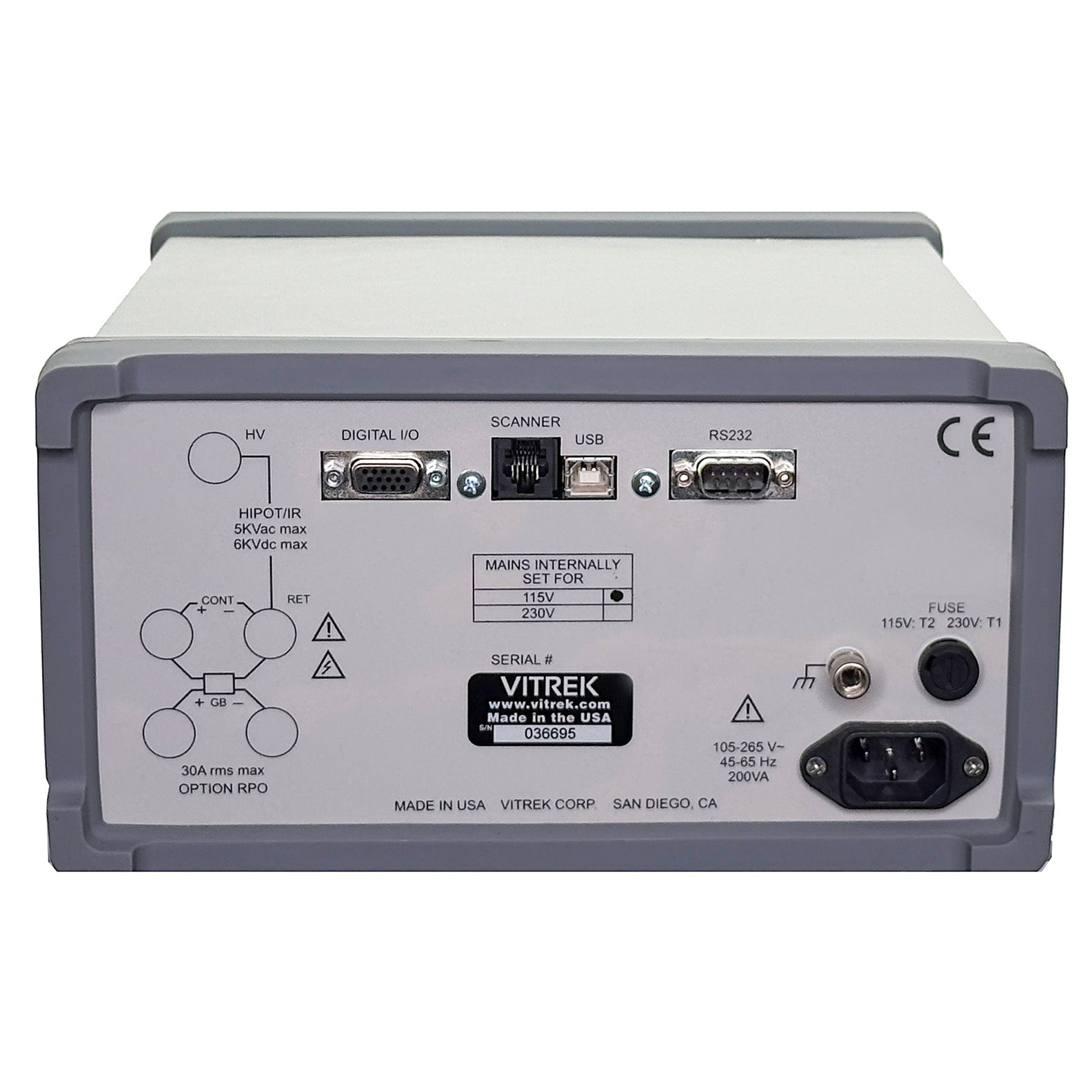

• USB, RS232, Digital I/O Interfaces
• Test Memory Stores up to 999 Steps and 60 Test Sequences
• Internal Self Test Fully Exercises Output and Verifies Current Accuracy
• Pre-Programmed Daily Verification Test With Optional PVD Test Load
• 150 µS Safety Shutdown
• Ramped Discharge Capability
• Selectable ARC Detection 1 to 20 mA
• Meets UL, CSA, IEC Safety Tester Requirements
• CE Safety Mark Certified to EN61010
• Power: 115 Vac ±10%, 50 to 60 Hz
• Weight: 6.8 kg (15 lbs), 7.9 kg (17.5 lbs) shipping


Please see the Datasheet for complete details and specifications.
