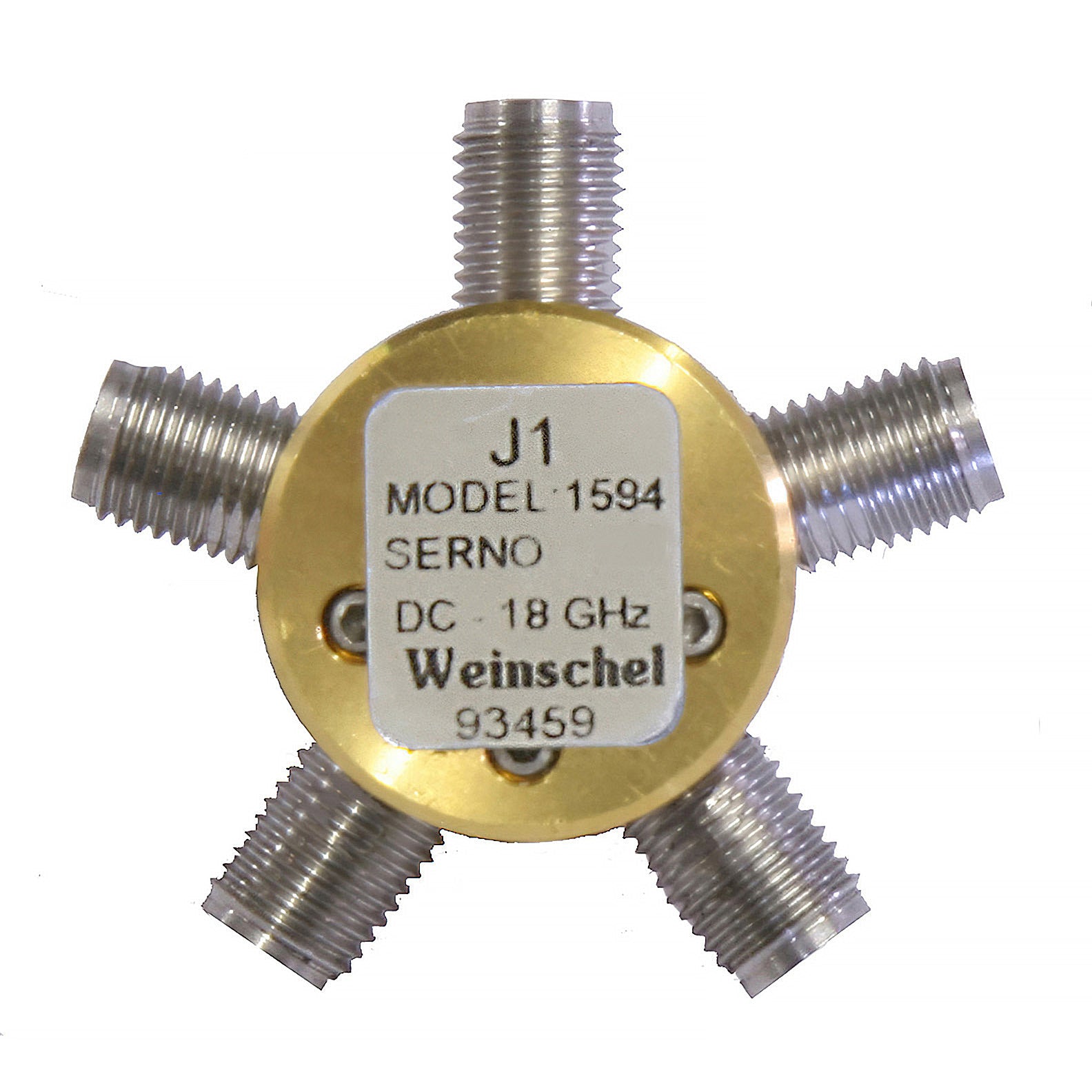

API / Weinschel 1594 4-Way Resistive Power Divider, dc to 18 GHz, 3.5 mm
The 1594 is a 4-Way Resistive Power Divider. There are many system applications where a power divider can be used to great advantage, some of which are the design of meticulousness, distribution of a signal to four or more antennas, etc. A well designed power divider is also useful in making laboratory measurements where a reference signal that exactly tracks the measurement signal is required.
- Nominal Impedance: 50 Ω
- Frequency Range: dc to 18.0 GHz
- Insertion Loss: 12 dB nominal, 14.5 dB Maximum
- Maximum Input Power: 2 watt CW
- 3.5 mm(f) connectors all ports
Please see Datasheet for complete details and specifications.
