Description

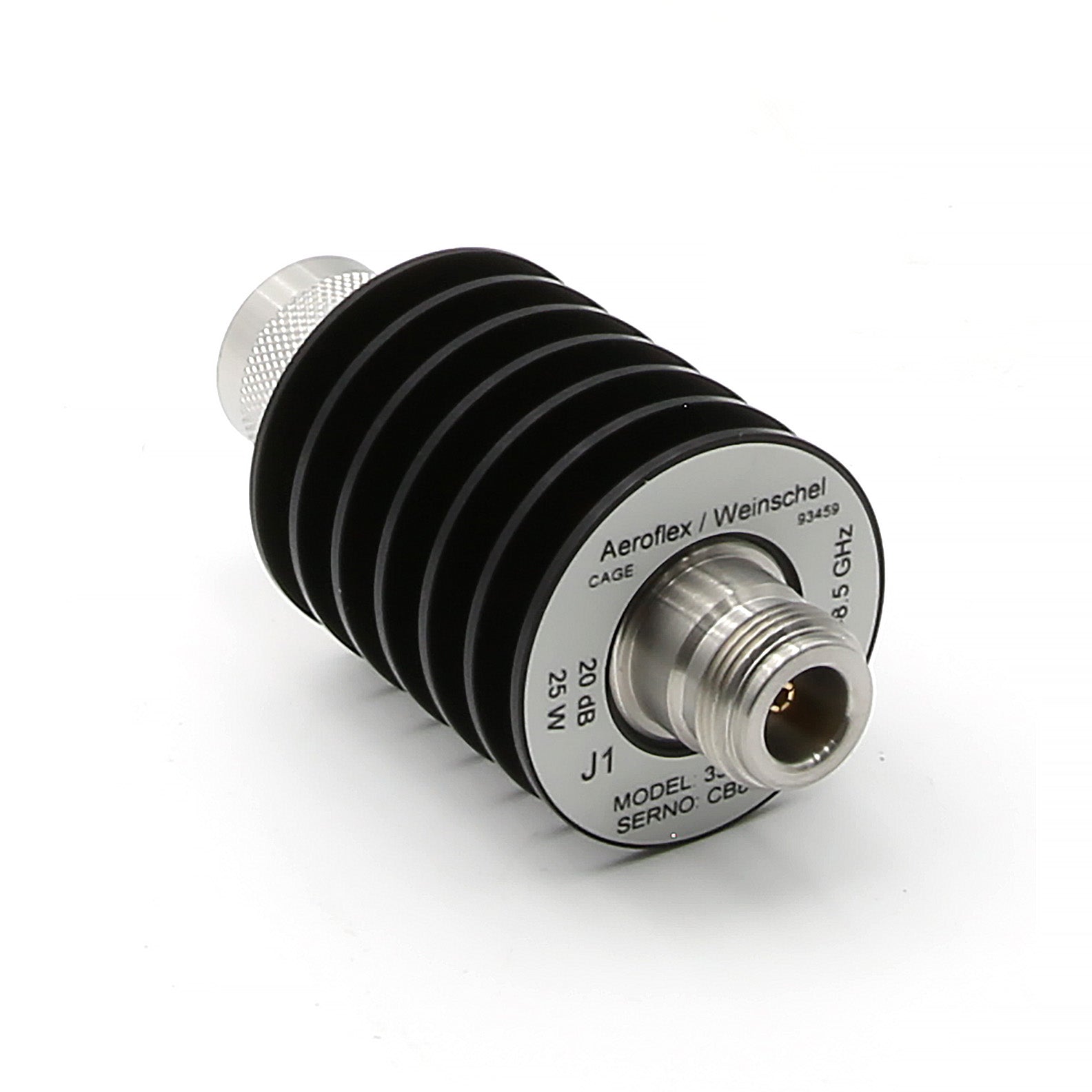

API / Weinschel Model 33 Coaxial Attenuator, dc to 8.5 GHz, 25 W
The Model 33 is a dc to 8.5 GHz, Medium Power Fixed Coaxial Attenuator. The model 33 is available in 3 dB, 6 dB, 10 dB, 20, 30 dB.
Connectors: Option 1 - 2.92 mm(f), Option 2 - 2.92 mm(m), Option 3 - N(f), Option 4 - N(m)
Features:
- Frequency Range: dc - 8.5 GHz
- Attenuation: 3, 6, 10, 20, 30 dB
- Power rating: 25 W
- 50 ohm impedance
- SWR (max.): dc-4 GHz 1.20, 4-8.5 GHz 1.30
- Connectors: one Type N(f) and one Type N(m)
- Shipping weight: 2 lb
Please see Datasheet for complete details and specifications.
Datasheets
