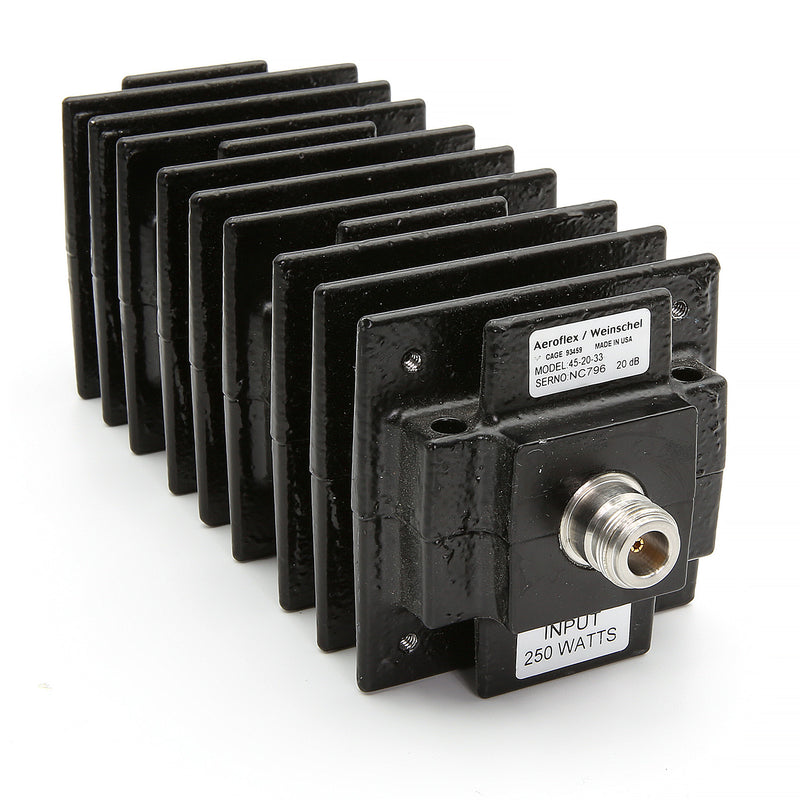

API / Weinschel Model 45 Coaxial Attenuator, dc to 1.5 GHz, 250 W
The Model 45 is a dc to 1.5 GHz, High Power Fixed Coaxial Attenuator. The Model 45 is configured with a combination of Type N(f) or Type N(m). Available in 10 dB, 20, 30 dB.
Connectors: Option 3 - N(f), Option 4 - N(m)
- Frequency Range: dc - 1.5 GHz
- Attenuation: 10, 20, or 30 dB
- Power rating: 250 W
- 50 ohm impedance
- SWR (max.): 1.10
- Connectors: option 3 - Type N Female, Option 4 Type N Male
- Shipping weight: 6 lb
Please see Datasheet for complete details and specifications.
