Description

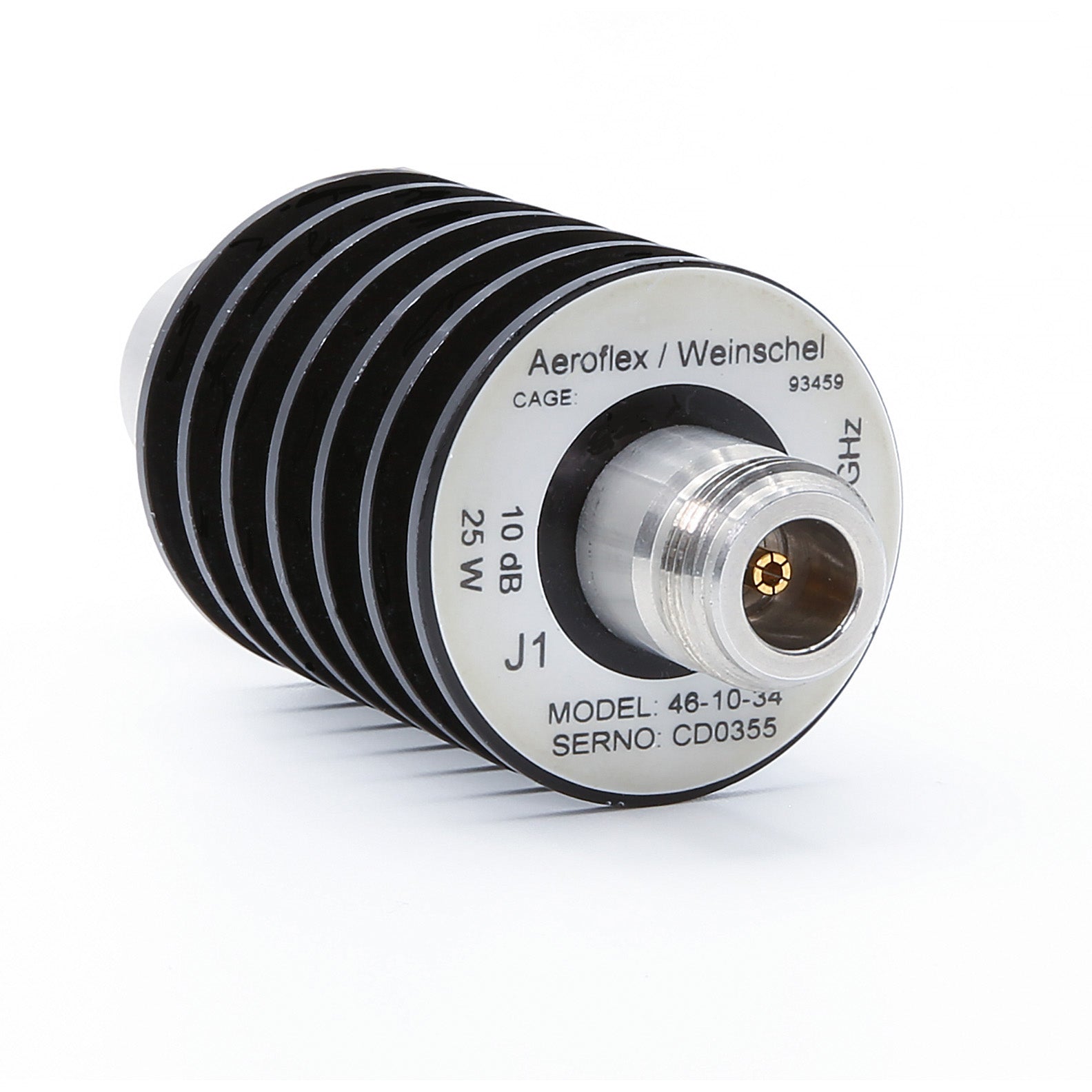

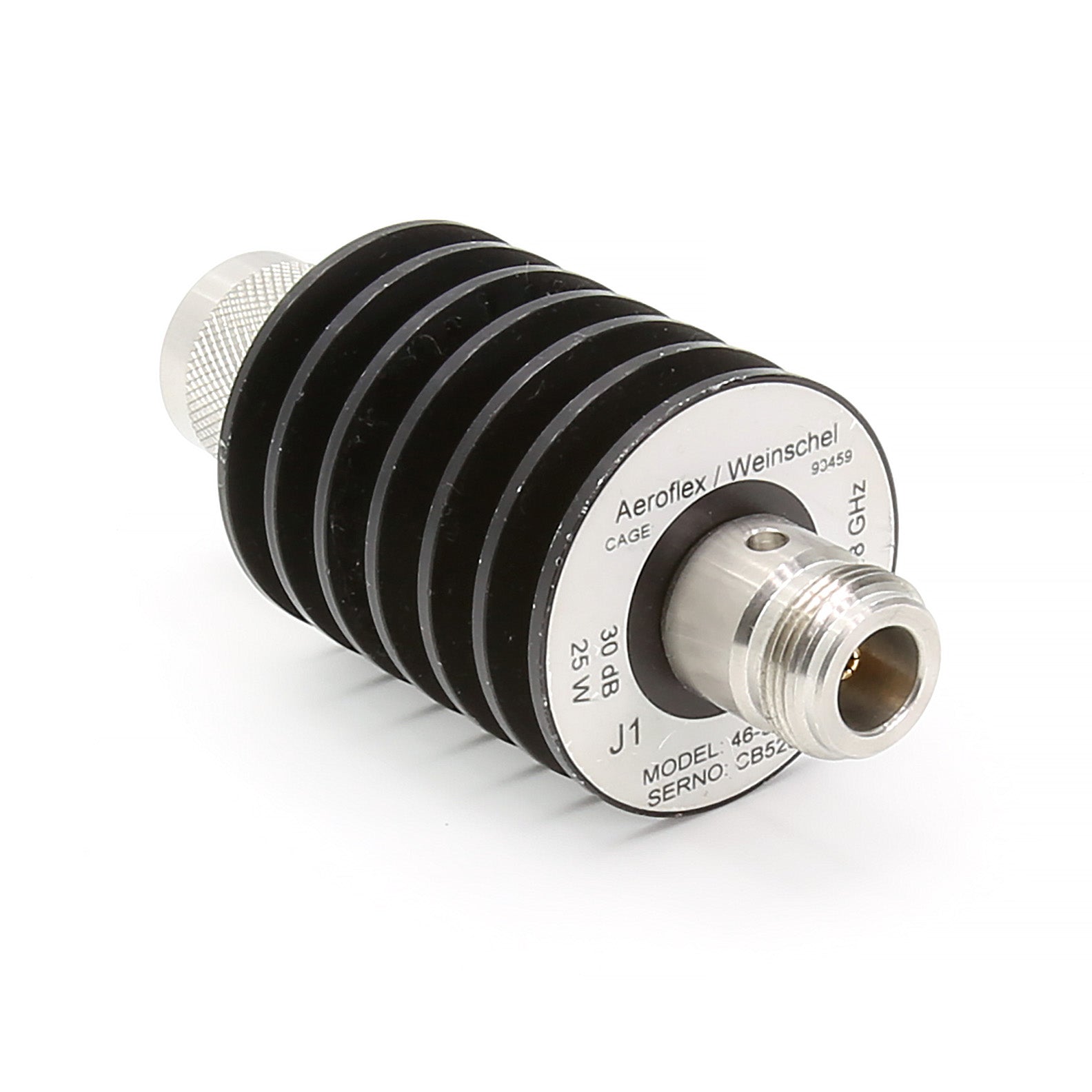

API / Weinschel Model 46 Coaxial Attenuator, dc to 18 GHz, 25 W
The Model 46 is a dc to 18 GHz, Medium Power Fixed Coaxial Attenuator. The Model 46 is configured with a combination of Type N(f) or Type N(m). Available in 10 dB, 20, 30 dB.
Connectors: Option 3 - N(f), Option 4 - N(m)
Features:
- Frequency Range: dc - 18 GHz
- Attenuation: 10, 20, or 30 dB
- Power rating: 25 W
- 50 ohm impedance
- SWR (max.): 1.30
- Connectors: option 3 - Type N Female, Option 4 Type N Male
- Shipping weight: 0.5 lb
Please see Datasheet for complete details and specifications.
Datasheets
