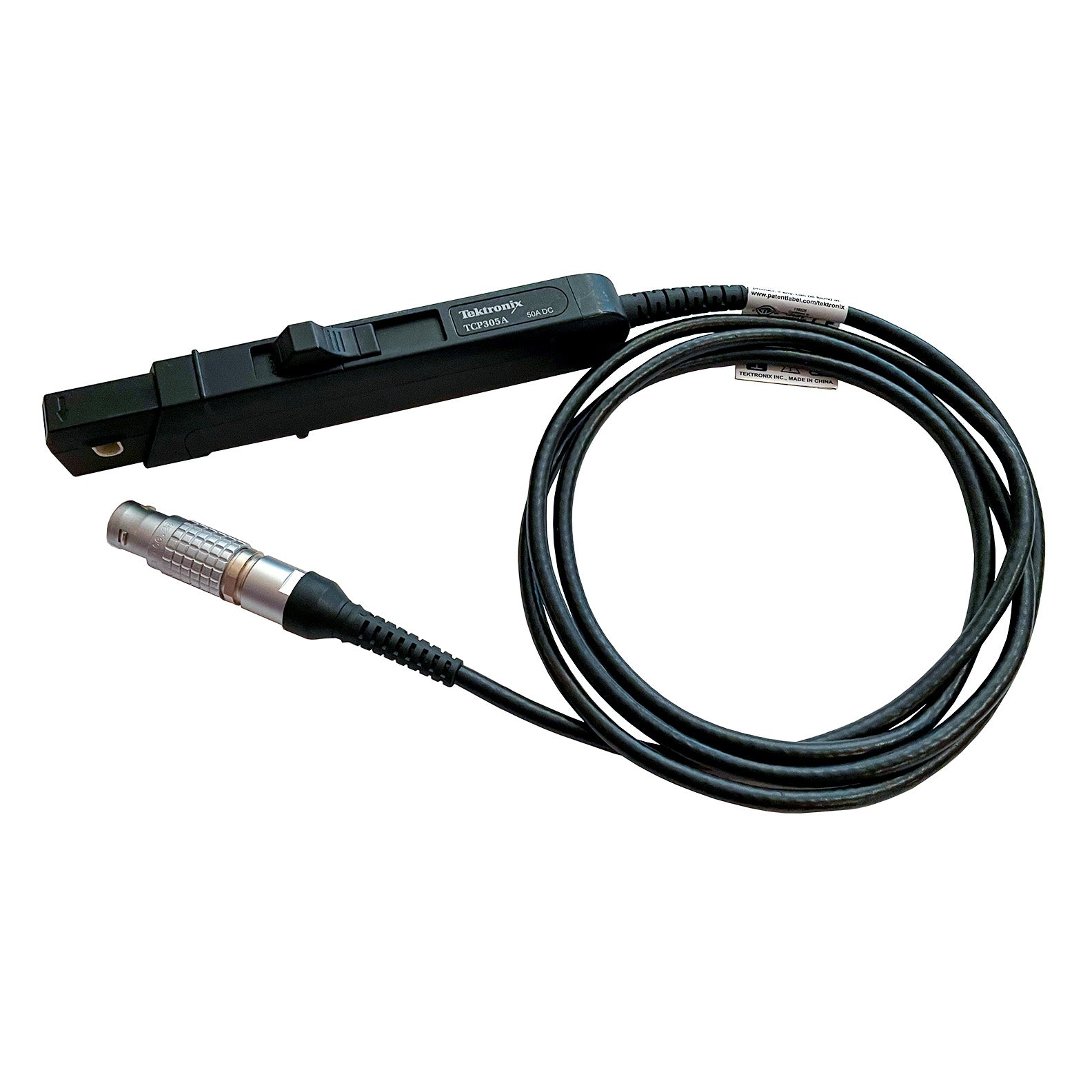

Tektronix TCP305A AC/DC Current Probe, DC to 50 MHz, 50 A
The TCP305A enables users to make direct readout DC and AC current measurements, resulting in accurately displayed and recorded measurements. The TCP305A is a general-purpose probe for displaying and measuring current in electronic circuits.
The TCP305A current probes is designed to work with the TCPA300 Current Probe Amplifier.
- Requires TCPA300 amplifier
- dc to 50 MHz
- Current (DC continuous): 50 A
- Lowest Measurable Current: 5 mA
- Jaw Diameter: 5 mm
- Automatic scaling and units - Oscilloscope on-screen readout of magnitude and amps reduces measurement errors with no more hand calculations
- AC/DC input coupling
- Low insertion impedance reduces device under test loading
- Split-core construction allows easy circuit connection
- Status indicators provide visual operating status and notification of potential error conditions - degauss, probe open, overload, not terminated into 50 Ω, noncompatible probe type
- Cable length: 1.5 m
- Shipping weight: 4 lb
Please see Datasheet for complete details and specifications.
